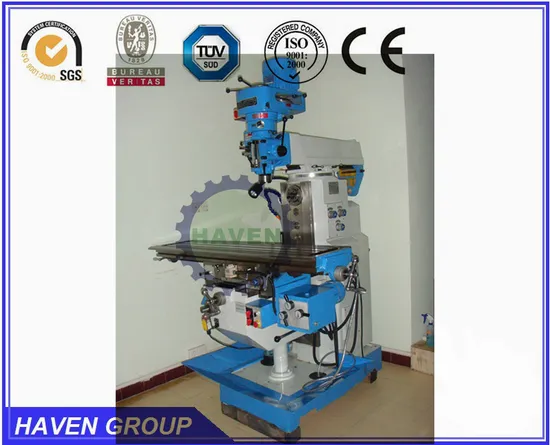

X6323A HAVEN Brand High quanlity Universal turret milling machine

US$3,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
X6323A
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
worktable travel
620X350X500
machine type
milling machine
Transport Package
Veneer Case
Specification
CE Standard
Trademark
HAVEN
Origin
China
HS Code
8455
Production Capacity
100PCS/Month

Product Description

X6323A HAVEN Brand High Quanlity Universal Turret Milling Machine
Main features:
1) Hihg quality with competitive price
2) 15 years export experience
3) CE,SGS, ISO Certificated
4) OEM SERVICE AVAILABLE
5) 24 HOURS' ONLINE SERVICE (MSN,SKYPE)
6) 14 months quality warranty (after B/L date)
7) Over sea engineers available for problem shooting
Our Target:BRAND HAVEN
High quality;
Assured Delivery;
Vigorous innovation;
Efficient Cooperation;
Noblesse Oblige
Item Unit X6323A X6323B X6325 X6325A X6325B X6325C X6325D X6330 X6330A X6333 X6333A
Table size Mm 230x1067;230x1246) 254x1270;254x1370; 305x1370;305x1500; 330x1370;330x1500;
Long travel Mm 650;840 850;950; 920;1000; 840;1000
Cross travel Mm 305 420 400 400 420 380 368
Vertical travel Mm 400 420 430 530
T-slot No.And size 3x16
Ram travel Mm 312 470 500mm
Distance from spindle nose to table surface Mm 0~415 0~405 0~350 0~450
Distance from spindle center to column Mm 170~482 140~609 108~760
Spindle hole taper Standard):R8;Optional:ISO30 / ISO40 Standard) ISO40
Spindle travel Mm 127mm
Spindle speed Rpm Standard:Shift grade 65~4500 Standard:Shift grade 65~4500
Optional:Variable) 65~4200 Optional:Variable 60~3750
Auto.Quill feed (three steps) :0.04 ( 0.0015" ) / 0.08 ( 0.003" ) / 0.15 ( 0.006" ) mm/revolution
Spindle motor HP 3 5
Head swivel ° 90 90 90 90 90 90 90 90 90 90 90
Head tilting ° 45 45 45 45 45 FIX 45 45 FIX 45 FIX
Dimension of package One unit per case Mm 1400x1476x2030 1516x1550x2080 1566x1650x2080 1800x2016x2180
Two units per case Mm 1450x1570x2080 1650x1750x2170 1720x1800x2175 1800x2280x2180
Three unitsr per case Mm 1450x2180x2080 1650x2285x2235
Machine weight Kg 1100 1160 1550 1380 1420g 1590 1590 1700 1750 2300 2350
