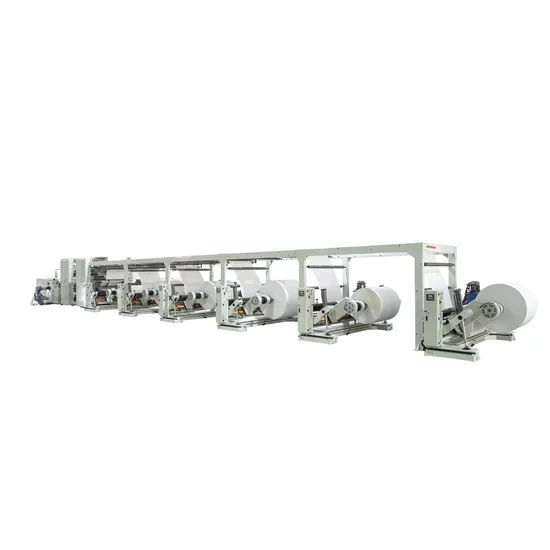

Dfj-A4 Automatic 2 Stand Unwinding Roll A4 Copy Paper Sheeting Machine with Overwrapping Equipment

Product Description

Dfj-A4 Automatic 2 Stand Unwinding Roll A4 Copy Paper Sheeting Machine with Overwrapping Equipment
Usage:
This machine specially designed for A3 A4 paper making. It can cutting many knids of materials, like paper, photo paper.It has very high precision. It can be connected to the packing machine directly, forming a full automatic production line.This machine can be equipped with 1 or 2 or 4 feeding rolls.
Performance and characteristics:
1. The production line machines adopt the Japanese brand PLC and have intelligent tension control system. 2. The machine adapt Japanese brand servo motors and frequency converter. 3. Automatic loading paper jumbo rolls 4. The unwinder can automatic lift up the paper rolls by the cylinder control.Saving labors 5. Automatic counting paper sheets and stop machine reaching the quantity. 6. High precision Web edge position automatic adjustment system. 7.Automatic count and stacking system.

Model	DFJ-A4-1100	DFJ-A4-1400
Max.Width of Master Roll	1100mm	1400mm
Max.Diameter of Master Roll	Ø1400mm	Ø1400mm
Min.Width of Cutting	A4/A3 Paper size	A4 /A3 Paper size
Cutting Speed	6Reams/mins	6Reams/mins
Total Power	20KW	23KW
Machine Weight	8000KG	10000KG
Cutting Precision	±0.2mm	±0.2mm
Machine Size	19300*7900*2000mm	19300*7900*2000mm

Certifications
Packaging & Shipping
After Sales Service
100% Good Machine Quality
One year Guaranty Time
24 hours On Line Service
Overseas Technician Available
Cotact Girl:Ms.Amy
Warmly welcome you to contact us freely ! FAQ
1.Q:Are you machinery factory or trading company
A:We are machinery factory,and also have one trading company
2.Q:Where is your factory located?
A:We are located Ruian City,Zhejiang Province,China
From SHANGHAI by air is 40 mins,by train is 4 hours.
From GUANGZHOU by air is 2 hours.
3.Q:How many years warranty?Can you teach us?
A:Usually,we given customer one year warranty time.We also have oversea technician service to help you install the machines.
4.Q:What's the payment method?
A:We can accepted T/T,L/C,Western Union,Moneygram and etc.

---
