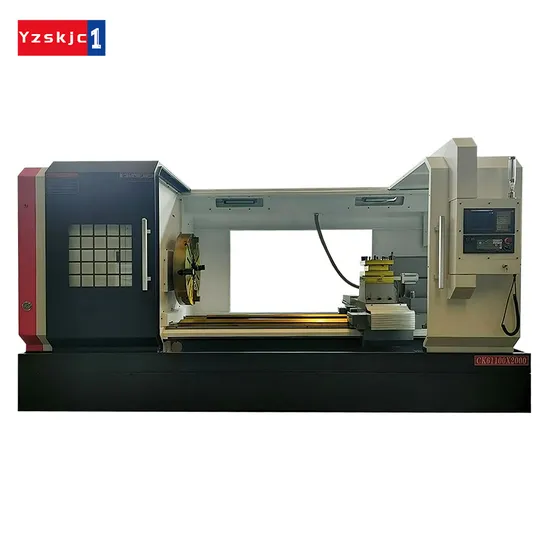

China Factory CNC Lathe Machine Flat Bed CNC Turning Machine

Product Description

China factory CNC Lathe Machine Flat Bed CNC Turning Machine

Product Description
The main technical parameters of China factory CNC Lathe Machine Flat Bed CNC Turning Machine :

Machine model	CK61100
Max.swing over bed (mm)	Φ1000
Max.swing over carriaget (mm)	Φ680
Maximum processing length (mm)	1500,2000,3000
Guide rail width (mm)	600
Spindle rotation form	4-speed continuously variable speed
Spindle speed range (r/min)	30-84/53-150/125-350/300-835
Spindle end structure	D11
Spindle hole diameter (mm)	Φ105
Clamping method	Φ1000 four-jaw chuck
Main motor	11KW (frequency converter 15KW)
X/Z stroke (mm)	530/1500/2000/3000
Ball screw diameter * pitch (mm)	32*8/63*10
Rapid moving feed (m/min)	4/6
Standard configuration of tool holder	Electric vertical four-station tool holder
Tool holder tool bar section (mm)	40*40
X/Z direction servo drive motor (Nm)	10/15
Tailstock sleeve diameter (mm)	Φ100
Tailstock sleeve inner hole taper No	MT6#
Tailstock sleeve stroke (mm)	250
Machine tool overall dimensions ((L×W×H)) (mm)	3600/4100/4600x1950x2000
Approximate weight of machine tool (Kg)	4400/4800/5600/6700

Main configurations for China factory CNC Lathe Machine Flat Bed CNC Turning Machine :

Name	Specifications	Quantity	Model	Brand Origin
Control System	GSK980TC3 system	1	Guangshu	Guangzhou
Spindle unit	self-control	1		Domestic
Screw bearing			Harbin	Domestic
Electric knife holder	LD-6163	1	Hongda	Domestic
Spindle motor	Main motor(11 KW)	1	Shanghai	Domestic
Ball screw		1	Nanjing Craftsmanship	Domestic
Automatic lubrication device		1		Domestic
Cooling pump	125W	1		Domestic
Frequency converter	11KW	1	HY	Domestic

Main features and function requirements for China factory CNC Lathe Machine Flat Bed CNC Turning Machine : This machine tool is a CNC machine tool with high speed, high precision and high reliability. The main components such as the bed base, bed bed, and headboard are all cast from high-strength materials to ensure the stability of the machine tool for long-term use. Adopting an integral bed structure, the machine tool has high positional accuracy, smooth chip removal, and is suitable for high-speed and high-precision machining. High-speed, high-precision and high-rigidity spindle, variable frequency spindle motor. The spindle is assembled in a constant temperature room. After assembly, it undergoes constant temperature running-in for 72 hours. After being put on the machine, it undergoes a continuous 72-hour test run to ensure the reliability of high-precision performance. Use the 4-station vertical electric tool holder method, which has fast tool changing speed and high positioning accuracy. Precision ball screws are used for feed in the X and Z directions. The servo motor is directly connected to the screw through a high-torque and low-inertia imported elastic coupling. The screw support adopts a pre-stretched structure, which can eliminate transmission backlash and pre-compensate the machine tool. The influence of thermal deformation on accuracy during long-term operation ensures positioning accuracy and repeated positioning accuracy; it adopts advanced centralized automatic lubrication device, timing and quantitative automatic intermittent lubrication, and the work is stable and reliable. The machine tool protection adopts a full protection design, which is highly pleasant, unique in appearance, reliable in waterproofing and chip prevention, and easy to maintain. Detailed Photos
China factory CNC Lathe Machine Flat Bed CNC Turning Machine :
Packaging & Shipping
China factory CNC Lathe Machine Flat Bed CNC Turning Machine :
Our customers :
Our Advantages
After Sales Service
The warranty period is 12 months, calculated from the date of successful installation and trial operation.The equipment provided by the seller is new and unused. The performance of the equipment, after installation, debugging, and operation complies with the relevant national standards or stipulated in the agreement between the parties.The seller shall provide relevant technical support within 2 hours upon receiving a phone call from the buyer. In the event that the buyer is unable to resolve the issue independently, the seller will conduct troubleshooting at the within 24 hours in sellers' country . Parts identified as quality-related issues during the warranty period will be replaced free of charge.We have professional technician team and we could offer installation and training in customers' factory , just charge for reasonable labor fee .

Company Profile
Our company is a national leading high-tech enterprise, an innovative enterprise in Jiangsu Province. And have powerful advantages for the OEM machines . Especially for the Edge planer/edge banding machine. It has obtained the National Torch Program Project Certificate (Project No.: 2011GH040591), the National Key New Product Certificate (Project No.: 2010GR10042), Jiangsu High-tech Products (Certificate No.: 081088G0104N), the Test Report of Shanghai Testing Center, and the National Scientific and Technological Achievements Transformation Fund. And also obtained the national "one the Edge planer/edge banding machine software copyright" certificate, four invention patents and six utility model patents. At present, our company's the Edge planer/edge banding machine has a market share of 80% in China.
Jiangsu Yichong CNC Machine Tool Co., Ltd
Address: Yangzhou Jiangdu High-tech Industrial Park North Park Zip code: 225267 International Trade Department: Wendy Marketing Manager FAQ
What equipment can you get from our factory ?
Lathe machine
CNC Vertical machine center
Leveling machine
Plate edge milling machine
Boring milling machine
Edge planer
Gantry drilling and milling machine
Oil pressure
Rolling machine
We support customized machines , welcome your asking .
Why choose Jiangsu Yizhong Machine Tool Co.,Ltd
Quality guarantee :
We have our own factory 498700m2 and we have mature manufacturing experiences since 2006 .
Before machine sending , we will be debugging a long time and confirm it could run well .
We have a rigorous QA and QC procedures and confirm each process following the orders' standard strictly . welcome our customer-self coming to check the machine tools quality .
Delivery time :
Usually our delivery time from 10 working days to 6 months . according to the machines you want to buy .some machines have machine bed in stock .
When we quote you , we will write the machine tool delivery time , and we will abide it carefully .
Advanced technician team :
We recognize that technical innovation is very important for a manufacturer , so our factory set up the Jiangsu Yizhong Industrial design and reach institute years ago ,which makes our factory powerful in customized machines .
If some technical questions our sales person can not answer , they will ask them and they can give a quick response .
By the way , our engineers are available to customers' local factories to assist them to do installation , operation guide and machine tool upkeep .
Sales team :
Our salesmen all are trained before they serve to our customers in factory , so most questions about the machine tools , they can give fast response ,which will save our customers' time .
Our salesmen all love their jobs , so they have passions when working . if you have any technical questions could ask them better before 12pm ,China time .

---
