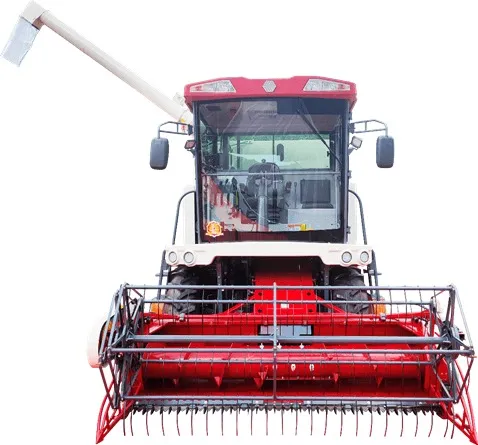

Farm New Technology Fully Automatic Manufacture Agriculture Combine Harvester
1. Turbo engine power 88hp and Gear Box ZKB65 and HST 40cc are used for higher work efficiency.
2. Fuel tank capacity 130L can meet the whole day's work.
3. All direction grain discharging pipe brings convenience.
4. Grain Tank 1.4m3 can make sure of storing grain 800kg at least.
5. Rubber Track 450/500*90*51 and min ground clearance 30cm can make machines work faster in deep mud field.
6. New spring reel is optional.
| Model | 4LYZ-8F |
| Type | Wheel type,Self-propelled,Whole-feeding |
| Dimension(Length*Width*Height)(mm) | 6100*3200*3350 |
| Engine Model | Yuchai |
| Engine Type | YC4DK150-T301 |
| Engine Power(Kw) | 110 |
| Engine RPM(r/min) | 2600 |
| Fuel tank(L) | 211 |
| Gearbox Model | HST+Gearbox(PLUS) |
| Cabin | Luxury cabin with air condition |
| Minimum turning radius(mm) | LEFT:6500 RIGHR:7500 |
| Tires | Driving wheel:14.9-24 Guide wheel:10/75-15.3 |
| Track gauge(mm) | Driving wheel:1900 Guide wheel:1670(can be adjusted) |
| Wheel base(mm) | 2960 |
| Minimum ground clearance(mm) | 350 |
| Cutting Width(mm) | 2750 |
| Feeding volume(kg/s) | 8 |
| Header Lifting | Hydraulic |
| Thresher | Longitudinal axial type toothbar |
| Threshing drum (Dia.*Length)(mm) | 700*2520 |
| Controling section | Imported HST+Electronic cruise control |
| Separating Type | Vibrating sieves+centrifugal blower |
| Grain unloading type | Automatic horizontal unloading pipe |
| Grain Tank Size(m*m*m) | 2.8 |
| Operation efficiency(h/h) | 0.2-1.2 |
| Crops | Wheat,Rice,Corn,Sorghum,etc |
