| US$1,800.00-2,100.00 | 1 set (MOQ) |

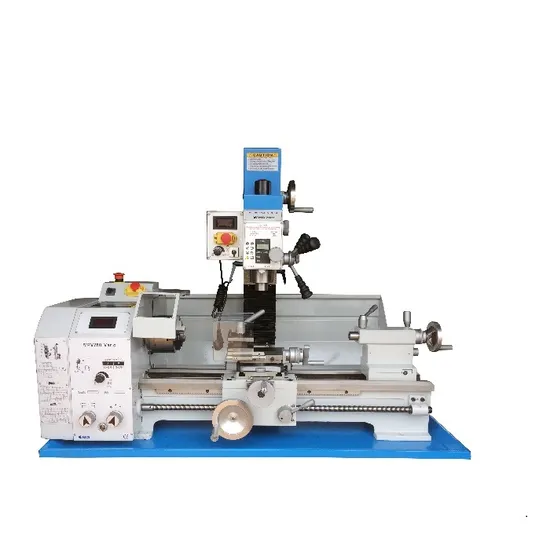

| Model | MPV250 | MPV280/700mm | |
| TURNING | Max.swing over bed | 250mm(10") | 280mm(11") |
| Distance between centers | 550/750mm( | 700mm(27-5/9") | |
| Swing over cross slide | 150mm(6") | 170mm(6-5/7") | |
| Width of bed | 135mm(5-1/3") | 180mm(7") | |
| Taper of spindle bore | MT4 | MT4 | |
| Spindle bore | 26mm(1") | 26mm | |
| Range of spindle speeds | 50-2500rpm | 50-2500rpm | |
| Range of longitudinal feed | 0.07-0.40mm/r | 0.07-0.40mm/r | |
| Range of inch threads | 8-56TPI | 8-56TPI | |
| Range of metric threads | 0.2-3.5mm | 0.2-3.5MM | |
| Taper of tailstock quill | MT2 | MT2 | |
| Motor power | 0.75kw | 1.1KW | |
| DRILLING & MILLING | Max.drilling capacity | Max.φ16mm(5/8") | Max.φ20mm(4/5") |
| Milling cap. of cutter head | Max.φ52mm(2") | Max.φ63mm(2-1/2") | |
| Milling cap.of end mill cutter | Max.φ16mm(5/8") | Max.φ20mm(4/5") | |
| Taper of spindle bore | MT2 | MT2 | |
| Sleeve travel | 52mm(2") | 52mm | |
| T T-slot size | 10mm(2/5") | 12mm(1/2") | |
| Range of spindle speeds | 50-3000rpm | 50-3000rpm | |
| Max.distance spindle to table | 280mm(11") | 380mm(15") | |
| Working range | 175mm(6-8/9") | 190mm(7-1/2") | |
| Motor power | 600W | 750w | |
| SHIPMENT DATA | Packing dimensions ( L×W×H ) | 1270×680×930mm | 1390×850×1060mm |
| Net weight | 180kg | 235kg | |
