US$1,200.00
|
1 Piece
(MOQ)
|
Basic Info.
Structure
Radial Drilling Machine
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
GS, CE, ISO 9001
Mechancial
Drilling,Tapping
Specification
32, 40, 50, 63, 80, 100
Production Capacity
2000PCS/Year
Product Description
Product Description

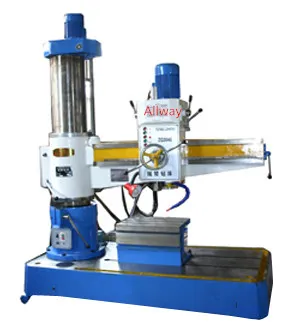

China Radial drilling Machine price (Z3040X13)
These radial drilling machines of Model ZQ3040× 13 are our main products and sell well at home and abroad because of their best quality and stability. These machines can be used to implement many processes, such as drilling, expanding, reaming, grooving, tapping and etc. On the small and middle parts and even boring if the relevant equipment are available and they are regarded as the idler machining equipments in the machinery and machine work industries.
Radial Drilling Machine
Universal machines
Capable of drilling
Counter-boring reaming,
Spot-facing tapping
Z3035x10 Radial Drilling Machine
1. The radial drilling machine is universal machines, capable of drilling, counter-boring, reaming, spot-facing, tapping and other similar utilities.
2. It is widely used in manufacturing machinery, for processing small and medium size machinery parts and also suitable for being used in repairing.
3. The machine is adopted strengthened type of spindle so that it increases the rigidity of spindle and widens the scope of utility.
4. The spindle has a wide range of turning speed and feeding speed, which make the operation more convenient and more precise.
5. The dimension processed can be set up before working, this allow it stop feeding automatically and has more accuracy
Radial drilling machine radial drilling machine radial drilling machine radial drilling machine radial drilling machine radial drilling machine radial drilling machine radial drilling machine radial drilling machine radial drilling machine
| Model | ZQ3040x13 |
| Max drilling dia(Steel/Iron)(mm) | 35/40 |
| Distance between spindle to column(mm) | 280/1290 |
| Horizontal movement of spindle box (mm) | 1020 |
| Distance between spindle to base(mm) | 235-1100 |
| Spindle travel(mm) | 270 |
| Spindle taper | MT4 |
| Spindle speed(6steps)(r/min) | 38-947 |
| Spindle feeds(3steps)(r/min) | 0.10,0.16,0.25 |
| Max feed resistance of spindle(N) | 6300 |
| Arm elevator speed(m/min) | 1.3 |
| Radial turn angle | 360° |
| Main motor(kw) | 3 |
| Elevator motor(kw) | 0.75 |
| Net weight(kg) | 1700 |
| Oversize dia (mm) | 1900x800x2350 |
>>
