20kg Automatic Silica Fume Valve Bag Bagging Machine

Product Description

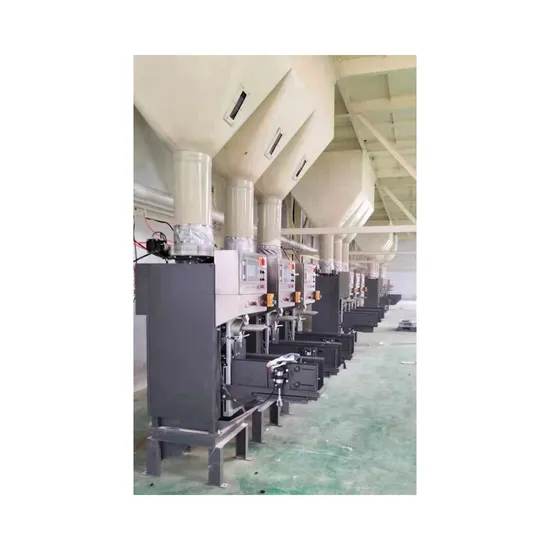

Valve bag packer
BCS-50M automatic dosing valve bag packer is a new generation packer. It
has four patents: low air pressure pulse conveying, super wearable airfloating
device, automatic adjust double stroke gate valve, ceramic spout.
The packer is suitable for packing different type of raw materials. Such as industrial
micro-powder, powdery pigment, powdery chemical, flour and food additive,
all types of dry mortar and others.

Technical parameter:
Capacity: 6-7 bags/min( note: different material, the packing speed is different)
Precision level: ±0.5%
packing range: 10-50kg
Material inlet size: Φ300mm
Ceramic spout size: Φ63mm
Valve bag mouth size: ≥Φ70mm
Max. Aggregate granular size: 5mm
Working ambient: 0-40ºC, humidity≤90%RH, no dew
working power: AC220V/50HZ
Voltage fluctuation range: -15%~+10%
Frequency fluctuation range: ±2%
working air source: pressure≥0.5Mpa, air consumption is 0.2m3/min
Dust collection air volume:≥2000m3/h
Standard outline dimension: LXWXH=1500mmX650mmX1900mm

---
