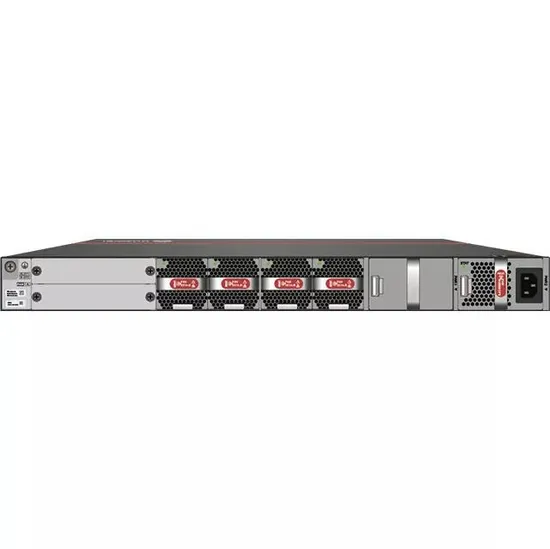

USG6615f 02353WAU (HTM) AC Host Firewall (8*GE COMBO + 4*GE RJ45 + 4*GE SFP + 6*10GE SFP+ 1 AC POWER)

US$2,014.00-2,498.00 1 piece (MOQ)

Basic Info.

Model NO.
USG6615F
Ports
None
Transport Package
Cartons
Specification
442 mm*420 mm*43.6 mm
Origin
China
HS Code
8517623200
Production Capacity
5000PCS/Month

Packaging & Delivery

Package Size
90.00cm * 60.00cm * 45.00cm
Package Gross Weight
12.000kg

Product Description

Detailed Photos

Product Parameters
Installation Type Rack
Cabinet installation standard Cabinet with a depth of 600 mm or above
Wide [mm] 442 mm
Depth [mm] 420 mm
Height [mm] 43.6 mm
Chassis height [U] 1
Weight without packaging [kg(lb)] 6.3 (13.89)
Weight with packaging [kg(lb)] 9.3 (20.5)
Maximum power consumption [W] 222
Maximum heat dissipation [BTU/hour] 757.46
Heat dissipation mode The fan module locates at the air exhaust of the system.
Power supply mode AC built-in
Rated input voltage [V] - AC: 100 V to 240 V, 50 Hz/60 Hz - High-voltage DC: 240 V, DC
Input voltage range [V] - AC: 90 V to 290 V, 45 Hz to 65 Hz - High-voltage DC: 190-290 V, DC
Maximum output power [W] 600
Maximum input current [A] 8
CPU 1 CPU, 16 Cores/CPU, up to 2.0 GHz
Memory DDR4 16GB with ECC
NOR Flash 64MB
NAND Flash 4 GB
Hard disk Optional. You can purchase a 2.5-inch SATA hard disk (240 GB/960 GB/1000 GB) from HW based on the site requirements. The hard disk is hot swappable.
Redundant power supply Two power modules are supported for 1+1 power redundancy.
Redundant fans 3+1
Number of power modules 1
Number of fan modules 4
Types of fans Pluggable
Noise at normal temperature (acoustic power) [dB(A)] ≤72 dB(A)
Airflow direction Air intake vent from front and air outlet from rear.
Long-term operating temperature [°C(°F)] Without hard disk driver: 0°C to 45°C With hard disk driver: 5°C to 40°C
Storage temperature [°C(°F)] -40°C to 70°C
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Storage relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] Without hard disk driver: 0 m to 5000 m With hard disk driver: 0 m to 3000 m
Storage altitude [m(ft.)] 0 m to 5000 m
MTBF [year] 31.63
MTTR [hour] 2
Console port RJ45
Eth Management port RJ45
Maximum number of 10GE ports 6
Maximum number of GE ports 12
