Tractor 3-Pointed Mounted Disc Plow

Product Description

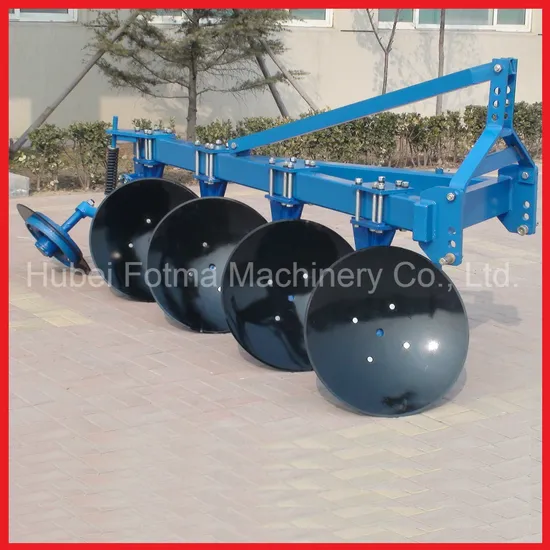

Tractor 3-Pointed Mounted Disc Plow
1. About us
Hubei Fotma Machinery Co. Ltd is one of the major suppliers and exporters of farm equipments and tractor implements in China, including various kind of tractor parts, implements and attachements.
Fotma got the certificate of ISO9001: 2000 and most of our farm implements are CE approved for USA and Europe respectively, which have been recognized by all countries in the world. We have business with over 100 countries in the world. We will be glad to work with the new partners worldwide. We will continue to keep to our strategic target of superior quality, low cost and globalized farm equipment, and adopt a management approach characterized by higher standards, full precision and itemization, and zero defects, endeavor to offer the world-class brand products and will build one of the most competent industrial bases in the world for Chinese engineering machinery, farm equipment and large industrial equipments.
2. Why choose us?
FOTMA is the leading and professional supplier in China for various kinds of agricultural implements!
FOTMA has over than 15 years experience with agricultural machines!
FOTMA can supply the best price and professional service!
FOTMA has good reputation with all world customers!
FOTMA is 13 year Gold Member at Made In China!
3. Product description
The disc plough is mainly used for tillage on dry cultivated or fallow land, especially on high yield's manure and virgin land. Good possibility and penetration, complete inversion and coverage. Small draft resistance, easy operation and adjustment All these satisfy the agricultural requirements of fine cultivation.The one-way disc plough is suitable for ploughing up the cultivated land as well as virgineland, especially for the green manure fields with stubls of rice or wheat. With the good performance of tillaging into the soil, it can satisfy the agricultural request. Moreover, the plough has the merits of less working resistance and easy to operate and adjust, etc.
We can offer more agriculture machinery and agriculture implements, such as backhoe, front end loader, disc plough, harrow, cultivator, and so on.
4. Features
It has compact structure and suitable for working on all various land. With the working performance of the machine, after cultivation, the land surface is leveling, the soil clods well crushed and turned over and the furrows is small.

5. Technical parameters

Model	1LYQ-220 1LYQ-220	1LYQ-315 1LYQ-315	1LYQ-320 1LYQ-320	1LY(T)-325 1LY-325	1LY(T)-425 1LY-425	1LY(T)-525 1LY-525	1LY(T)-625 1LY-625
Overall dimensions (L*W*H)cm	133*76*110	178*76*110	179*79*115	221*112*143	275*124*143	329*136*143	383*150*143
Secondary Plough(m)	0.4	0.45	0.6	0.75	1.0	1.25	1.5
Working Depth(mm)	200	180	200	250	250	250	250
Dia. of disc (mm)	500	450	500(510)	650(710)	650(710)	650(710)	650(710)
No. of ploughs	2	3	3	3	4	5	6
Weight(kg)	150(160)	170(180)	190(200)	430(450)	500(520)	570(600)	650(680)
Linkage Type	Class I Three Point Hitch	Class I Three Point Hitch	Class I Three Point Hitch	Class II Three Point Hitch	Class II Three Point Hitch	Class II Three Point Hitch	Class II Three Point Hitch
Transport Clearance (mm)	≥200	≥200	≥200	≥200	≥200	≥200	≥200
Production (ha/a)	0.21	0.22	0.3	0.375	0.5	0.63	0.75
Matched Power (kw)	11	11~13.3	18.4	36.7~44.1	47.7~58.8	≥73	≥88

6. Photos
7. Payment
If you would like to get an offer or place an order, Contact us with the products name, model, quantity desired or a description if not listed in our website. All of our prices are for dealership based on wholesale purchase. We offer various payment options such as Wire Transfer (T/T), Letter of Credit at sight, Paypal, Westunion etc.
8. Shipment
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
9. Contact us
Ms. Mavis Zheng
Hubei FOTMA Machinery Co., Ltd
Add: No. 52 Guanggu Avenue, Hongshan, Wuhan city, Hubei Province, P.R.China.
Tel: +86 17740672791, +86 27 67845266

---
