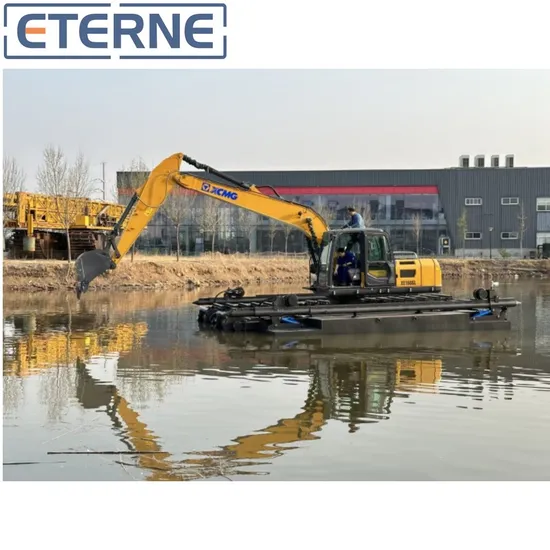

3 M Water Working Amphibious Excavator with Spuds

Product Description

Professional design amphibious dredging 22 tons hydraulic excavator long reach boom & arm

Position	Description	Parameters of Standard Boom
A	Undercarriage Length	8500mm
B	Counterweight Ground Clearance	2035mm
C	Overall Height ( to the top of the cab)	3990mm
D	Overall Height ( to the top of the boom)	3970mm
E	Overall Length	11721mm
F	Tail Turning Radius	2794mm
J	Track Gauge	3500mm
H	Overall Width	5400mm
I	Pontoon Width	1500mm
J	Minimum Ground Clearance	1170mm
K	Pontoon Height	1840mm
L	Cab Width	2990mm
M	Pontoon Grounded Length	5150mm

Pontoon Length	8500mm	single	8500mm	after connected
Pontoon Width	1800mm	single	5160mm	after connected
Pontoon Height	1840mm	single	1840mm	after connected

Upper excavator	ET
Pontoon Material	Q345 Reinforced Steel
Thickness of pontoon	Bottom 6mm, Side 4mm
Travel motor assembly	Doosan TM40VC x 4
Material of chain	40Cr Hard-wearing steel
Pontoon dimension	8500 x 1800 x 1840mm - single 8500 x 5160 x 1840mm - after connected

Successful Case
ShanDong Eterne Mining Machinery Co.,Ltd.
1, Is large manufacturer service company,Specialized in designing,manufacturing, installing of amphibious excavators equipments
2,Our company was founded in 2015 year as one of leading manufacturer of gold mining equipment in China .
3,Main Products: Gold trommel, centrifugal concentrator, vibrating sluice, clay washer, vibrating screen, gold dredger etc.was well sold both home and abroad.
4,Exported to Russia, Laos, Vietnam, Kazakhstan, Tajikistan, North Korea, the Philippines, Mon golia, Myanmar, Papua New Guinea, Indonesia, Fiji, South Africa, Ghana, Benin,
FAQ
Q1:What about the delivery?
We can offer our equipment by containers or bulk ship, just depend on your actual request.
Q2:What is the warranty?
We provide 1 year warranty and free repair if quality problems emerge within warranty peride.
Q3:What's the payment methode?
We can accept T/T, L/C, WESTERN UNION and so on.
Q4:Is it factory?
Yes,we have our own factory.And welcome to visit our factory.
Q5.Whether it can be customized according to customer requirements?
Yes,we can design according to customer's requirement,we have many kinds of model.
You can choose the suitable one.

---
