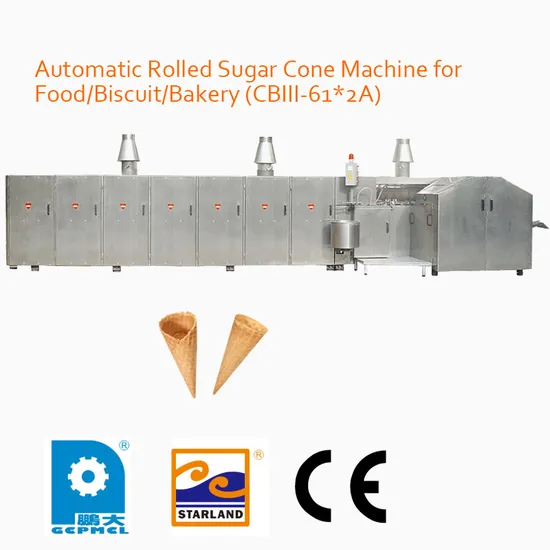

Automatic Rolled Sugar Cone Machine for Food/Biscuit/Bakery (CBIII-61*2A)

Product Description

Automatic Rolled Sugar Cone Machine
MODEL:CBIII-61*2A APPOX GAS CONSUMPTION :LPG11-13KGS/HOUR LNG17-19M3/HOUR
DRIVE MOTOR : 2HP
AIR BLOWER :2HP
MOTORIZED ROLLED SYSTEM :320*240MM
BAKING PLATES: 61
ROLLNING STATIONS :24 ROLLING CORES
FROM SIZE : 110-120MM LENGTH
CAPACITY: 6800-7200 PCS/HOUR
MACHINE MEASUREMENT : L11.80*2.25*1.73 METER
TOTAL WEIGHT : 5800KGS
SHIPPING VOLUME : 36CBM/40FT CONTAINER
FULLY MECHANICAL OPERATING. LONG RUNNNG LIFE PRODUCTION FOR ROLLED SUGAR CONE
Key features:
Double Layered Panel Door
Hot air escapes from door top while cold air move in from door bottom. air inside door become heat insulator. It reduces heat loss from the oven, saving energy and keeping the panel cool.
CBI series and WBI series
(Baking Plares Size:240mmX240mm;suitable for cones length 108mm or less and waffle basket)

	CBI-47A*/CBI-47X2A*	CBI-71A*/CBI-71X2A*	CBI-107A*/CBI-107X2A*
Number of baking plates	47	71	107
Standard Cones/hour**	4200	6600	9500
Gas Consumption(kg)/hour	5-6	9-10	11-12
Machine Dimension(mm)	6700L*2400W*1800H	9600L*2400W*1800H	13900L*2400W*1800H
Machine Weight(kg)	4500	6500	9600
Main Motor specification	1.5hp;1.1kw	2.0hp;1.5kw	2.0hp;1.5kw

CBIII series and WBIII series
(Baking Plares Size:320mmX240mm;suitable for cones length over 125mm and waffle basket)

	CBIII-39A*/CBIII-39X2A*	CBIII-55A*/CBIII-55X2A*	CBIII-61A*/CBIII-61X2A*
Number of baking plates	39	55	61
Standard Cones/hour**	3500	5500	6000
Gas Consumption(kg)/hour	5-6	9-10	10-11
Machine Dimension(mm)	7000L*2400W*1800H	9500L*2400W*1800H	10500L*2400W*1800H
Machine Weight(kg)	4700	6500	8500
Main Motor specification	1.5hp;1.1kw	2.0hp;1.5kw	2.0hp;1.5kw

CBIV series and WBIV series
(Baking Plares Size:260mm*240mm;suitable for cones length between 100mm to 120mm and waffle basket)

	CBIV-45A*/CBIV-45X2A*	CBIV-63A*/CBIV-63X2A*	CBIV-97A*/CBIV-97X2A NEW*
Number of baking plates	45	63	97
Standard Cones/hour**	4000	6000	9000
Gas Consumption(kg)/hour	5-6	9-10	11-12
Machine Dimension(mm)	6800L*2400W*1800H	9000L*2400W*1800H	To be confirmed
Machine Weight(kg)	4500	6500	10000
Main Motor specification	1.5hp;1.1kw	2.0hp;1.5kw	2.0hp;1.5kw

*Ameans one cone per baking plate while x2A means two cones per baking plate
** Standard cone is 23° with cone length 110mm; standard cone /hour for x2A(two cones per baking plate) only.
Also, production output depends on the quality of cone mix, oven tempreature and thickness of wafer.

---
