Slip ring designer and manufacturer from 25 years factory with various certifictaions A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A standard through slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. Its inner part rotates with a rotating shaft pass through the inner hole, so we call it " through hole slip ring" It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

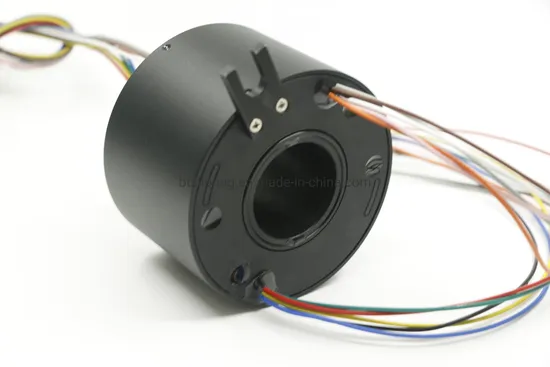

This is an example of through hole slip ring with inner hole 50mm .
For other model, please contact or login our website , besides through hole slip ring, we manufacture capsule slip ring, separate slip ring, pancake slip ring etc... many other models for your option .

Standard Through hole slip ring BTH50120

Parameters:
Mechanical :

Working speed	1000rpm
Operating temperature	-40ºC~ +100ºC
Contact material	Precious metal
IP Grade	IP 54

Electrical:

Circuit	6,12,18,24
Current	5A,10A ,15A,20A or combined rings to get higher current
Voltage	≤380V, 600V optional
Dielectric strength	≥1000V@50Hz between each circuit
Insulation resistance	1000MΩ@ 500VDC
Electric noise	≤7mΩ
Lead wire size	22AWG, 17AWG,14AWG,UL, color , silver or tin plated
Lead wire length	200mm

Critical Dimension:

Model	Length "L"
	Current	Formula (A means No. of ring)	6 circuits	12 circuits	18circuits
BTH50120	2A/5A	30.2+3.3×A	50mm	69.8mm	89.6mm
	10A	30.2+4.0×A	54.2mm	78.2mm	102.2mm
	15A/20A/30A	30.2+4.8×A	59mm	87.8mm	116.6mm

Wire color code :

Features of Standard Through hole slip ring BTH50120: Low noise Wear-resisting Long life-span Good impact resistance Signal/Data and current compatible Workable in hostile environment(-40ºC~ +100ºC) Flexible design for special requirements Options of Standard Through hole slip ring BTH50120: Circuits Loading of each circuit Wire length Inner hole /outer hole diameter or length Higher IP grade Working speed Gold contacting Housing color Typical application of Standard Through hole slip ring BTH50120:
Aerospace / Defense
• Armored vehicle turrets, IR and EO systems
• Missile seeker gimbals and inertial systems • Helicopter de-ice systems, EO / IR trackers and target
systems
• Fixed-wing aircraft - EO / IR trackers, fire control systems, surveillance systems and targeting systems
• Missile counter measures
• Space - solar array mechanisms• Shipboard / submersible - navigation systems and fire control radar
• Surveillance systems
Industrial
• Medical equipment and devices • Robotics• Index tables• Semiconductor handling
• Pan tilt cameras• Packaging and processing equipment • Cable reels• Wind energy• CT scanners
Marine
• Remote operated vehicles (ROV)• Seismic surveying• Oceanographic winches• Subsea
communications and control• Floating production, storage and offshore loading (FPSO) • Diving
• Marine instrumentation
• Down hole / wire logging and drilling

Advantages of slip ring manufacturer---ByTune: Affordable price Quality guaranteed Response within 24 hours Prompt delivery Reliable package & shipment Flexible & quick customization Delivery time and shipment of ByTune: 2 weeks ARO By UPS ,DHL or FedEx (depends on your location) 3 days door to door service

---
