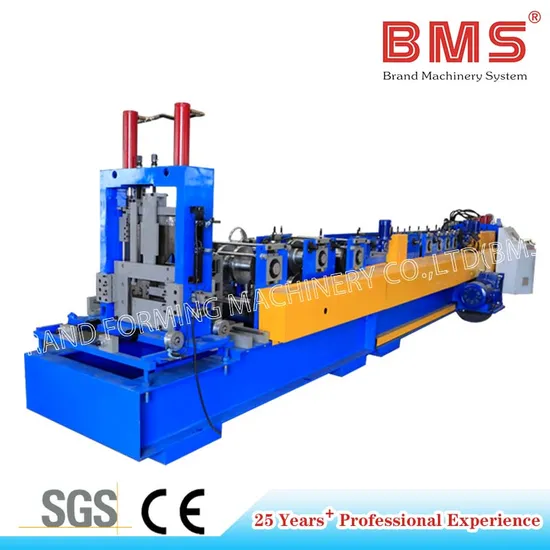

Automatic Changed CZ Purlin Cold Roll Forming Machine with PLC Control System Roller Form Machinery

Product Description

Automatic Changed CZ Purlin Cold Roll Forming Machine with PLC Control System Roller Form Machinery
Product Description
Auto-Change type C to Z Automatic Purlin Machine for C80-300 & Z120-300 profile
Main Machine
With feeding material guide, body frame made from H450 type steel by welding
Side wall thickness: Q235 t30mm ;
Tie rod:ф22 Galvanized
Rollers manufactured from Gcr15/Cr12 steel,CNC lathes,Heat Treatment,hard Chrome Coated
with thickness 0.04mm,surface with mirror treatment
The warranty for the rollers is 2 years
Shafts Diameter=ф90 mm,precision machined
Gear/Sprocket driving,about 21-step to form(19-step to form and 3 step for final shaping).
Main Motor=18.5KW , Frequency speed control
Speed redcucer motor:K series;
Size changing motor:6pcs, Automatically controlled by PLC Programing.
Sliding block:150*150mm;
All the screw bolts with grade 8.8
Real forming speed 20m/min (depending on the number of punching holes)With squareness roller setup
Pre-Punching

Post-Hydraulic Decoiler
Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor:7.5KW,with Hydrualic Pre-Cutting&Punching Device Share a hydraulic station ;
Cutting tool material: Cr12Mov(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine hydraulic station
Plus our PATENTED hydraulic UNIVERSAL post-cutting device(NO NEED TO CHANGE cutting die for different size like traditional purlin machine), which make the cut profile looks better
Profile Drawing
PLC Control System
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.

Combined With	PLC, Inverter, Touch Screen, Encoder, etc
PLC	Siemens (German brand)/Schneider(French brand)
Inverter	Siemens (German brand)/Schneider(French brand)
7-Inch Color Touch Screen	Siemens (German brand)/Schneider(French brand)
Encoder	Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor
Thermal Relay	Siemens(German brand)/Schneider(French brand)
Air Switch	LG-LS(Korea brand) Cut-to-Length Tolerance≤±1 mm Control Voltage 24V

After-Sale Service
1. The warranty is 24 months after the client receives the machine.
Within The 24months, we will courier the replacement parts to the client free of charge
2.We offer technical support for the entire life of our machines
3. We can send our technicians to install and train the workers in the clients' factories with extra cost
Terms Of Trade

Minimum order quantity (MOQ)	1 Set
Delivery time	about 45 workdays
Port of loading	port of Xiamen
Type of payment	by T/T or by L/C
Export	to more than 80 countries and regions, including South Korea, Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia, Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc

Packing Style

Packing method

Main body of machine is naked and covered by plastic film(to protect of dust and corrosion), loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
