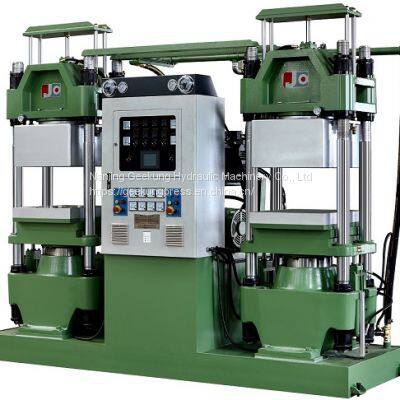

Pharmaceutical butyl rubber stopper vulcanizing machine

Product Details

Product Description

Product Description
This Pharmaceutical butyl rubber stopper vulcanizing machine with vacuum system is specially developed for the production of butyl rubber pharmaceutical caps, rubber plugs,rubber covers, rubber stoppers.
Compared with normal rubber molding machine, this Pharmaceutical butyl rubber stopper vulcanizing machine is with enlarged piston stroke and bigger daylight opening distance,making it much easier for the operator to work.
Technical specification:

Clamping force (tonnage)	Main piston diameter (mm)	Platen size (mm)	Main piston stroke (mm)	Daylight opening (mm)	Power consumption (KW)
200T	φ355	505x510	400	500	42.9
250T	φ400	570x610	400	500	48.3
350T	φ457.2	700x700	400	500	48.3
500T	φ560	850x850	500	600	80.5

---
