30W 50W Fiber Laser Marking Machine for Metal PVC Plastic Card Engraving Laser Printer

US$2,200.00-3,280.00 1 Set (MOQ)

Basic Info.

Model NO.
IPS-LF30 F
Laser Visibility
Visible
Applicable Material
Nonmetal
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Solid Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Part No
IPS-Lf30f
Laser Power
30W
Wavelength
1064nm
Overrall Power
Around 300 Watt
Power Supply
220V/50Hz/5A/1p
Scanning Galvanometer
High Speed Digital Motor
Focus System
Two Red Light with Outline Indication
Repetition Accuracy
+-0.002 mm
Min Linewidth
0.01mm
Linear Speed
Around 8000 mm/S
Marking Size
70*70mm/110*110mm/175*175mm/300*300mm
Weight
75kg
Operation System
Android
User Interface
10.4 Inch Touch Screen
Language
English Russian Thailand Korea Arabic Portuguese
Transport Package
Wood Carton
Specification
57*66*155CM
Trademark
IPS
Origin
China
HS Code
8456110090
Production Capacity
1000/ Year

Packaging & Delivery

Package Size
57.00cm * 66.00cm * 155.00cm
Package Gross Weight
75.000kg

Product Description

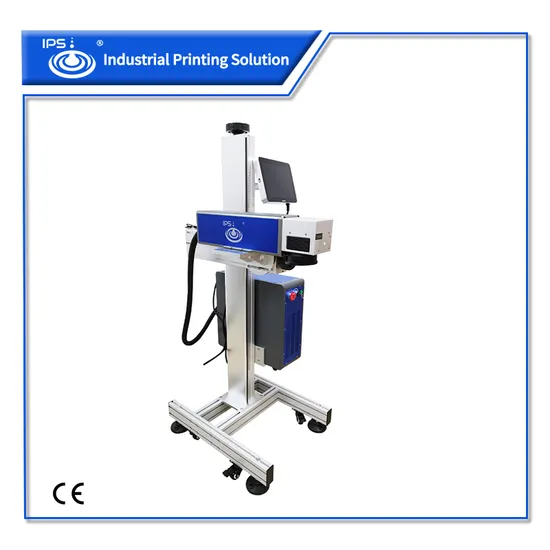

Flying 30 Watt 50W Mini Fiber Laser Marking engraving Machine with CE Certificate for metal
Support customized staring screen and logo, multiple language
Fiber laser marking is a technique which uses computer-controlled laser beam to leave permanent mark on the surface of various kinds of object. The working principle of fiber laser marking machine is to use light amplication to cause chemical effect or burn part of the material to mark letters, symbols, bar codes, and other graphics on an object.
Applications
Laser marking machine is widely used in most kinds of product in different industrial, such as integrated circuit chip, computer accessories, industrial bearings, watches and clocks, electronic and telecommunication products, aerospace parts, auto parts, home appliances, hardware tools, molding, wire and cable, food packaging, jewelry, tobacco and etc.
SPECIFICATIONS OF IPS-LF30W
Model IPS-LF30W F
Laser Power More than 30 watt
Laser Wavelength 1064 nm
Laser Frequency 20K HZ-80K HZ
Linear Speed around 8000 mm/ s or more
Marking Size 75*75mm, 150*150mm, 200*200mm, 300*300mm
Min Linewidth 0.01 mm
Min Font Height 0.01 mm
Repetition Accuracy +-0.002 mm
Overall Power Less than 500 W
Power Supply 220V/50-60HZ/5A/1P
Laser Gun Brand MAX/ RAYCUS/ IPG/ Others
Laser Gun Type Solid-state Fiber Laser
Scanning System Digital Scanning Galvanometer with high seep moto
Focus system Two Red Light with accurate position
Cooling system Built-in Air Cooling
Indication System Inner Outline Indication
Flying System 10.4 inch professional fly marking system based on Android
Weight Around 75KG
Overall Dimension 57*66*155 CM
File Format Support Support file from CORELDRAW,AUTOCAD,PHOTOSHOP directly. SupportAI,PLT,PCX,DXF,BMPfile.
Support all fonts from windows system. Support automatic coding, serial no, batch no, real time, variable barcode and QR code and databases.
