3 Phase NEMA42 110mm 42CF17048-1000 Closed Loop Step/Stepping/Stepper Motor Kit 110CF Easy Servo Motor and Driver

Product Description

NEMA42 EASY SERVO MOTOR
42CF SERIES HIGH TORQUE LOW VIBRATION
General Specifications:
Step Angle------------------------------------------------------------------------------------------------------------- 1.2°(full step)
Step Angle Accuracy-----------------------------------------------------------------------------------±5%(full step, no load)
Resistance Accuracy-----------------------------------------------------------------------------------------------------------±10%
Inductance Accuracy-----------------------------------------------------------------------------------------------------------±20%
Temperature Rise-------------------------------------------------------------------80ºC Max(rated current, 2 phases on)
Ambient Temperature Range------------------------------------------------------------------------------------- -20ºC∽+50ºC
Insulation Resistance------------------------------------------------------------------------------------ 100MΩ Min. 500VDC
Dielectric Strength------------------------------------------------------------------------------- 750VAC 50Hz 1mA 1 Minute
Insulation Class----------------------------------------------------------------------------------------------------- B Class(130ºC)
Electrical Specifications:

Shaft:
Round Shaft Key Shaft
High Voltage Digital Stepper Servo Drive
CF30822E
Overview:
The CF30822E stepper servo drive system integrates the servo control technology into the digital stepper drive perfectly, and fit the NEMA 34,42 three-phase stepper motor. This stepper servo driver uses the latest 32-bit DSP and combines the advanced servo algorithm to control. Compared to the traditional step drive, this step servo driver can completely avoid the stepper motor lost step problem, and effectively restrain the temperature rise of the motor, reduce the motor vibration, greatly enhance the performance of high-speed motor. At the same time, the size of the adapter is compatible with the traditional step motor, which is convenient for customers to upgrade and replace. In short, the stepper servo driver set the advantages of no lost step, low temperature rise, high speed, high torque, low cost and so on in one, is a cost-effective high motion control products.
Key Features:
1. Without losing step, High accuracy in position
2. 100% rated output torque
3. Variable current control technology, High current efficiency
4. Little vibration, Smooth and reliable moving at low speed
5. Accelerate and decelerate control inside, Great improvement in smoothness of starting or stopping the motor
6. User-defined micro steps
7. Compatible with 1000 and 2500 lines encoder
8. No adjustment in general application
9. Lack of phase, over current, over voltage and over position protection
10. Six digital tube display, easy to set parameters and monitor the motor running state
Key Specifications 180~250VAC supply voltage Suitable for 3-phase, 3 leads hybrid stepping servo motors, with NEMA size34 to 42 Continuous output current 4.0A Optical isolation signal input / output Positioning accuracy is 200~ 51200 steps / turn Over Voltage, Coil to Coil and Coil to ground short circuit protection Pulse Input Frequency 0~200KHz Installation Dimensions (mm)

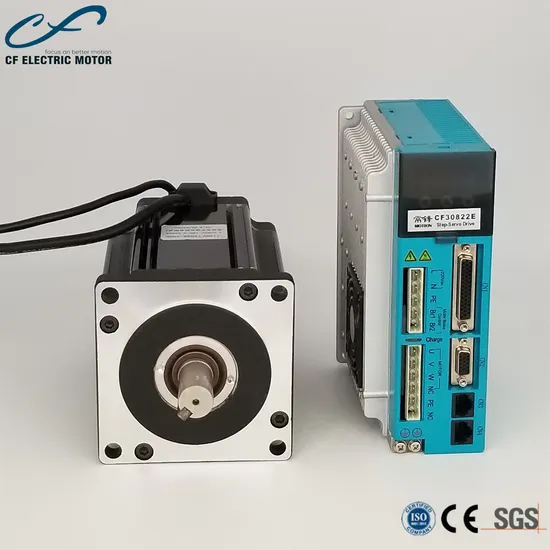

Motor and Driver:
Packing: Hard cardboard or wooden box with foam inside.
Shipping: 1. Various kinds of shipping method for choosing according to order quantity and customer's destination.
BY EXPRESS BY VESSEL BY RAILWAY BY AIR
2. Normally the delivery time is approx15 days according to customer's choice or ship by the best way to the destination.
Delivery: 1.With over 17 years of manufacturing experience, any type of customizing is available. 2.With perfect service system, we can provide you with first class pre and after sale service. 3.We have enough storage of each type of products, with first class packaging and shipping, make sure the accurate delivery. 4.Professional sales consultants give you all answers about our proucts.
Certificate:
FAQ:
Question1: What is your service time:
Answer: 24 hours online service. Email will be replied within 12 hours.
Question2: What about your products' warranty?
Answer: 1 year. For sea orders, the warranty is 15 months.
Question3: Do you have any certificate?
Answer: Yes we have. Our factory passed ISO9001 and SGS verified. All motors have been approved by CE.
Question4: Do you offer ODM and OEM Service?
Answer: Yes. ODM products according to customized design and specification as well as OEM products.
Question5: What is the delivery time?
Answer: For samples, 10-30 days according to the differnet produced difficulty. For bulk, normally 20-30 days. For customized order, the delivery can be negotiated.

---
