Mbus-IC Card Water Meter Wired

Product Description

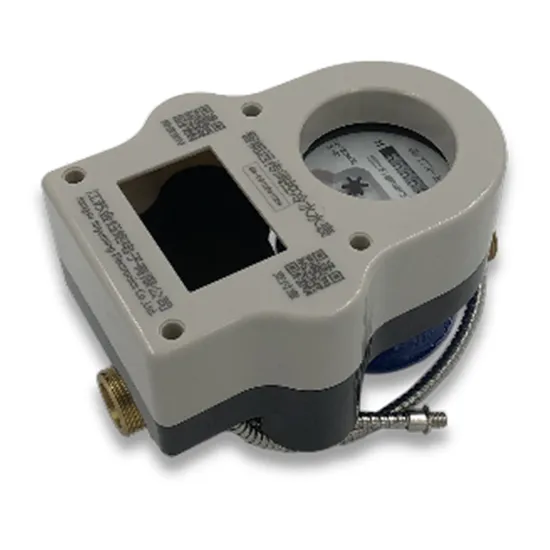

Product Description JYME1S004-LXS-E Series Wired Valve RF Card Water Wiume is a read smart water meter based on MBUS standard communication protocol. Wired MBUS technology communication, communication distance is far, convenient for networking. Easy to write reading and controlling water meters, realizing remote direct reading of water meters, effectively avoiding management departments on table meter reading, improving meter reading efficiency, with amplifier recharge function.

The water meter is designed with an electromechanical separation structure, and the measurement is accurate. The base table and the wired acquisition electronic unit can be completely separated, and each independently operate, it is convenient to install, which is convenient for later maintenance.

Model:
JYME1S004-LXSZ-E MA611T

Brand:
JinYuming

JYME1S004-LXS-E Series Electrical Parameters

	Name	Parameters				Remark
		Minimum	Typical	Maximum	Unit
1	Main Power	+2.7	+3.6	+3.7	V
2	Battery undervoltage point	3.1		3.4	V
3	Quiescent operating current	3		6	uA	Not connected to the reed switchmagnetoresistive sensor, no communication
4	Dynamic operating current	6		9	uA
5	Remote power supply voltage		3.6		V
6	Remote power supply current		1		mA
7	Operating current during communication		500		uA	Reed switch/magnetoresistive sensor not working
8	Continuous communication interval	180		480	mS
9	Continuous Working Time	6			year	4.0Ah battery, remaining power is greater than 70% after six years
10	Communication rate		2400		bd
11	Communication distance		1	2	km	Depends on the number of loads
12	M-BUS voltage	24	30	36	V
13	Normal Operating Temperature	-10		50	ºC
14	Extreme operating temperature	-20		60	ºC
15	Storage Temperature	-30		70	ºC
16	Humidity		85%
17	Motor drive timeout waiting time		25		S
18	Motor stall current		30	180	mA

JYME1S004-LXS-E Series Power Consumption

	Current consumption details	Current parameters		Each Duration		Each Time Interval	Annual power consumption (AH)
		Size	Unit
1	Motherboard quiescent operating current	20	uA				0.2
2	MCU wake-up power consumption	300	uA	1	mS/time	172,800 times per day	0.0053
3	Battery self-depletion						0.1
4	Valve power consumption	1700	mA	25	S/time	1 time per month	0.0014
5	Total						0.32~0.372

Mechanical Dimensions


JYME1S004-LXS-E Series Dimension Drawing

Caliber	L1	L2	L3	H	M	D	Weight
	Unit/mm						Unit/kg
15	259	165	13	104	115	G1/2B	1.34
20	299	195	13	104	115	G3/4B	1.55
25	345	225	13	104	115	G1B	1.75
