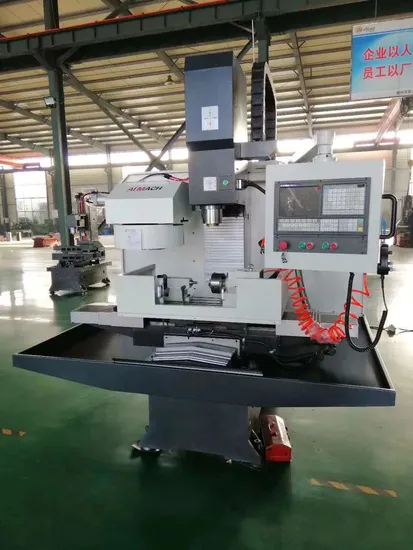

Small Size Bed Type CNC Milling Machine

Product Description

FEARURES:
*4pcs Tool stations on worktable with high efficiency. can finish all process of surface machining, hole machining and tapping by clamping workpiece;
*High and low step speeds available and stronger torque for low step speed;
*3 axis transmission by precision ball leadscrew,servo motor driven;
*Two styles of tool change avaiable, manually pneumatically.
*Various famous CNC controllers supplied with for more choice;
*Machine stand and machine body are designed separately for easy and flexiable installment by user.
Standard Accs.:
*Working lamp
*Coolant system
*Automatic lubricating system
*Fanuc controller system

Model	XK7124B
Size of worktable(L×W)(mm)	800×240
	900×240 Optional
T slot(width ×qty×spaces)(mm)	16×3×60
Max loading weight on worktable(kg)	60
X/Y/Z-Axis travel(mm)	430×280×400
	530×280×400
Distance between spindle nose and table(mm)	50-450
	50-550
Distance between spindle center and column(mm)	297
Spindle speed(r/min)	100-6000
Spindle taper	BT30
Tool clamping way	Pneumatic
ATC capacity(optional)	4pcs Simple ATC
Feeding speed(mm/min)	0-2000
Rapid feeding speed:X,Y,Z axis(m/min)	6
Positioning accuracy(mm)	0.04
Repeatability accuracy(mm)	0.02
Min.set unit(mm)	0.001
Main motor power (kw)	2.2/3.7
Feeding motor power:X/Y/Z Axis(kw)	1/1/1.5
Max.size of tool(mm)	Φ60×175
Max.loading weight of Tool(kg)	3.5
N.W(include machine stand)(kg)	1000
Overall size(L×W×H)(mm)	1640×1205×1950(2050)
Packing size(L×W×H)(mm)	1900×1620×2480(2580)
Loading amount(20")	3sets

---
