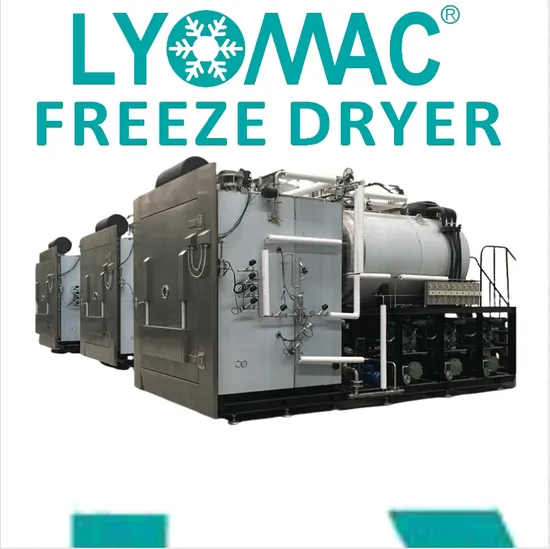

Fruit/Food/Pet Food Vacuum Lyophilizer

Product Description

Freeze Dry Technology
freeze dryer lyophilizer price freeze dryer price lyophilization machine Freeze drying is the drying of frozen products in a vacuum below the triple point. The vacuum allows for a sublimation process facilitating the direct conversion of ice into vapor without any intermediate liquid stage. This results in an extremely gentle drying process preserving the product's active ingredient. Widely applied in the pharmaceutical industry and food industry.
Description
Industrial Model Freeze Dryer Lyomac Freeze Dry Solution LMF Series capacity from 50 kgs to 2000kgs,covering most demand for Pilot to industrial production, pursuit of high efficiency, energy saving, environmental protection and easy operation solutions.
1. All in one design,shelf with the function of cooling, freezing and drying in same chamber
2. LMF conductive freeze dryer adopts electrc heating source,fully PID controlled
3. Whole machine built with SUS304,sanitary and durable
4 Integrated compact design, space-saving, all system remote controlled on PC
Specification List

Model	LMF-5	LMF-10	LMF-15	LMF-20	LMF-25	LMF-30	LMF-50
Capacity (Kgs)	50	100	150	200	250	300	500
Shelf Area(m²)	5.40	10.80	15.84	19.8	25.20	29.70	51.30
Shelf Size(mm)	1200*900*20	1200*900*20	1200*1200*20	1500*1200*20	1500*1200*20	1800*1500*20	1800*1500*20
Tray Size(mm)	400*300*30	400*300*30	400*300*30	400*300*30	400*300*30	500*300*30	500*300*30
Tray Qty(Nos)	45	90	132	165	210	198	342
Power(kw)	40	63	93	120	135	147	215
Dimension(mm)	4500*1750*2200	6000*1750*3800	6800*2000*4200	7500*2000*4200	7200*3000*4200	7600*3000*4200	9600*2300*4700

Model	LMF-60	LMF-70	LMF-90	LMF-100	LMF-120	LMF-150	LMF-200
Capacity (Kgs)	600	700	900	1000	1200	1500	2000
Shelf Area(m²)	58.0	69.8	88.4	104.7	117.8	147.3	206.2
Tray Size(mm)	710*610*37	650*610*37	710*610*37	650*610*37	710*610*37	710*610*37	710*610*37
Tray Qty(pcs)	136	178	204	260	272	340	476
Trolley(set)	2	3	3	4	4	5	7
Power(kw)	118	140	195	240	285	396	461
Steam consumption	180kgs/h	210kgs/h	270kgs/h	300kgs/h	360kgs/h	450kgs/h	600kgs/h
Installation space(m²)	230	280	300	380	430	450	480

Feature
1. Consists of blast freezer and freeze dryer, material get frozen in the blastfreezer and move to chamber to get dried.
2. Large loading capacity up to 2000kgs.
3. LMF radiation freeze dryer adopts steam as heating source, high efficiency.
4. The aluminum shelf adopts the overall anodizing treatment with superior flatness to ensure temperature uniformity and high radiation efficiency.
5. Over-head mono-rails system realize clean and convenient material transportation, high degree of automation, simple and convenient operation.
Optional Choice
* Robot Arm loading System
* Automatic Tray Washer
* Tray Sterilizer
How to choose lyophilizer?
Company profile LYOMAC was founded in 2009, as a leading supplier to provide state of innovative and reliable freeze-drying solutions for biological, pharmaceutical and nutraceutical industryDuring the past decade, Lyomac has built freeze drying system in more than 15 countries. Most of them compliance with local regulation,Lyomac has advanced, modern tools and facilities to fabric freeze dryer and automation systems. Which is a base to provide high reliable and precision products, we understand it increase safety for high tech material to be well processed for our users.The most value for Lyomac is whole team, with commitment of 'Best freeze drying solution for bio and pharma industry'. We are constantly develop innovative technology for customized demand.
Certifications
Exhibition

FAQ
Q: What is your MOQ?
A: 1 set.
Q: How to choose suitable equipment ?
A: Tell us your URS ,then we will recommend you suitable equipment according to yourrequirements, application experience and feedback from our clients.
Q: How long is your delivery time?
A: Standard delivery time in local market is 4 months
Electrical power with 60Hz, need extend 4 weeks more
Freeze dryer with sub door or Screw compressor need 4 weeks more
Project need document of IQ,OQ,PQ,DQ need 3 weeks more
Project with PED/ASME certification need 4 weeks more
Air shipping need 'Safety transport certification 'need 2 weeks more
Q: How to solve the equipment trouble during using ?
A: Please email us about problem with pictures or a small video will be better,we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.
For more detailed information about freeze dryers, please feel free to contact us!

---
