High Bearing Capacity JIS S45c Steel Guide Forging Pulley Crane Double Sheave Block

Product Description

JIS S45c Steel Guide Forging Pulley Crane Sheave Block
Product Description

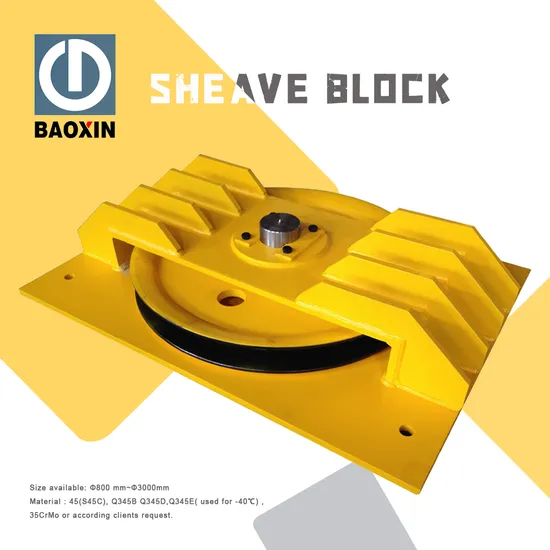

Guide sheave block :
With high bearing capacity, high wear resistance and long service life
Sheave features:
1) Material: Q235B, Q345B, 35#, 45#, 60#, SSW-QR1, S45C
2) Groove surface quench: HRC45-55
3) Groove surface quench depth: 2mm-2.5mm
4) groove MT after heat treatment and welding line UT and MT
4) Max processing diameter: 2, 000mm
5) Short production cycle
It is used for crane equipment, port equipment, oil drilling rig and so on. Product Parameters

Code	Wire rope diameter(mm)	Main dimension(mm) B
		Groove diameter	Outside diameter	R	Groove Width	Shaft diameter	Bearing hole width
BX1251	10-14	355	400	7	37	55	64
BX2251	>14-19	450	510	10	50	80	74
BX3251	>19-23.5	560	631	12	60	95	90
BX4251	>23.5-30	710	800	15	73	130	106
BX5251	>23.5-30	900	1012	19	92	160	128
BX6251	>30-37	1000	1126	22	104	160	128
BX7251	>43-50	1250	1402	26	123	190	148
BX8251	>50-58	1400	1572	29	135	190	148

Detailed Photos
Application

Other Products

Company Profile
For 12 years, Mr. Zhou has stood for innovative products, a passion for technology, responsibility.
As a globally technology manufacture company, we put all of energy to promise quality and excellence. We've organized resources into new and established markets and developed gears, sheaves and so on.
Our results announcement is over USD 10, 000, 000 per fiscal year. Last but not least, we've doing hard work to perfect ourselves, tapping business opportunities.
Note: For special order, please write and provide drawing sample!
Customer Visiting

FAQ
Our Service:
If you are interested in any of our products, please contact me freely! Warmly Welcomed your visit to our factory in China, OEM service will be ok.
FAQ:
Q: What information should I provide if I want to order the products?
1) Product information: Quantity, specification
2) Delivery time required.
3) Shipping information: Company name, address, phone number, destination seaport/air port.
4) Forwarder's contact details if there is any in China.

Q: How about your payment terms?
A: 30% -50%deposit, with the balance before delivery, we accept T/T and L/C at sight.

Q: Can I use our own logo?
A: Yes, we can produce by using your own logo if you need.

Q: How about sample & MOQ policy?
A: Welcome sample order. MOQ can be 1 set.

Q: What is your lead time for your goods?
A: Normally 30 days after confirmed order,

---
