automatic sample loom

Product Description

Product Description

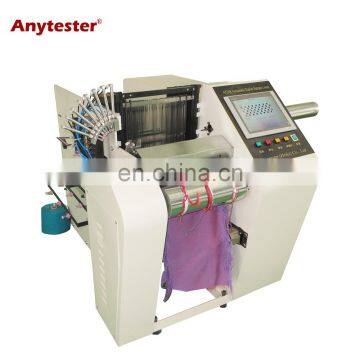

Product DescriptionAT248 Automatic Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of shedding mechanism, weft insertion mechanism, beating-up mechanism, take-up mechanism, let-off mechanism, weft selection mechanism, electrical control mechanism, etc. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.Features1. Consists of control part (computerized control platform) and mechanical part (loom);2. Weft inserting with rigid rapier, suitable for 7s~100s cotton, terylene/cotton, chemical fiber and other fabrics;3. Stepper motor driving let-off device, automatically adjust warp tension;4. Imported pneumatic control element, can control 20pcs heald frame at most, easy to mount and dismount heald frame;5. Heald frame adopts die drawing aluminium alloy profile, with hard oxidation wear-resisting treatment;6. Adjustable pneumatic controlled beating-up mechanism, large force and adjustable moment of force, suitable for fabrics of high count and high density;7. Electronic control take-up mechanism driving by imported stepper motor and reducer, 10~300pcs/inch of weft density.Specification Model AT248Reed width12 inches ( 16,20,24,28,32 inches optional)Yarn range5-500texSpeed30~45 weft/min, adjustableColor selection8 color, full automatic, pneumatic controlNo. of heald frame4~20Take-upstepper motor controlLet-offactive electronic controlSheddingcomputer control, pneumaticBeating-uppneumatic control or servo motor drivingWeft insertionpneumatic control or servo motor drivingAir pressure0.45~0.8MPaAir consumption530L/min max. (12”), 380L/min (20”, 24”)Power supply1 phase, 220V, 50HzDimensionMain machine: 680×1250×1100mmControl part: 698×900×1000mm

---
