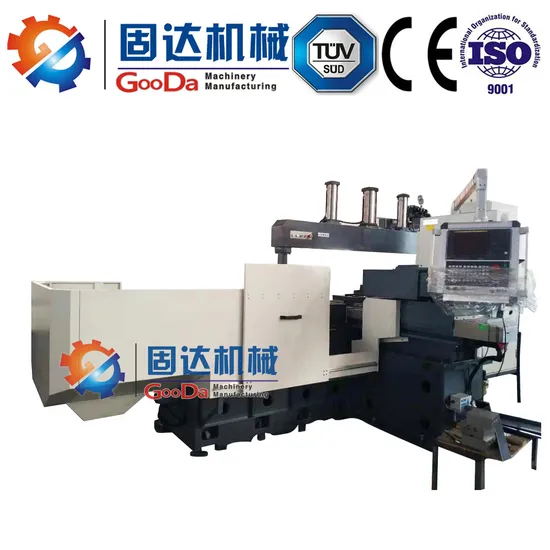

Fanuc System CNC Two Head Milling Machine OEM-Machining Plate Double Head Milling Machine Manufacture-Finished Plate Duplex Milling Machine Purchase

Product Description

TH-1500NC Fanuc system cnc two head milling machine OEM-machining plate double head milling machine manufacture-finished plate duplex milling machine purchase
Main Function:
CNC system once setting and automatic guides where work-piece loading place, automatic measurement, four- sides process, which can reduce working strength of operator and increase Productivity, maintain high accuracy for dimension, squareness and parallelism.

Main Specifications of CNC DUPLEX MILLING MACHINE TH-1500NC
Items	Name	Specification
GooDa CNC DUPLEX MILLING MACHINE TH-1500NC		TH-1500NC
Cutting capacity	Control axis number	4
	Cutting capacity mm	2*1.5
	Cutting width mm	(40-500)-(40-1500)
Worktable	Dimensions mm	400*400+400*1000
	Max loading weight kg	2800
Spindle	Spindle speed(Infinitely variable speeds) rpm	50-500
	Spindle power kw	2*9
	Spindle taper	NT50
	Cutting diameter mm	200 OP 250
X axis	X/Y/Z axis motor power kw	2.5/2.5/3.0
Y axis	X/Y/Z Max feed speed m/min:	10000/10000/10000
Z axis	X/Y/Z Max cutting speed	8000/8000/8000
Accuracy	Squareness mm/300mm	0.015
	Accuracy for dimension mm/300mm	0.015
Tank capacity	Hydraulic oil tank L	60
	Lubrication oil tank L	3
Power	Power	AC380V/200 45KVA
Net weight	Machine net weight KG	13000

Main part of CNC DUPLEX MILLING MACHINE TH-1500NC

Sort	Name	Quantity	Origin	Remark
Machinery	Worktable ball screw	3	Taiwan HIWIN	Steady transmission,High accuracy, Wear-proof
	Guide rail	3	Taiwan HIWIN	Good bearing Strong stability
	Main Spindle (Horizontal)	2	Taiwan POSA	Low noise, high strength, Taiwan famous brand
	Flexible stainless steel plate shield of worktable	2	Domestic	High strength, Strong durability, dust-proof, Protect the guide rail and ball screw.
	Base casting	1	HT300	Good stability, excellent wear-ability
	Automatic lubricating machine	3	Domestic	Electronic-self-lubrication, Quantitative oil supply to the each part
	Oil line	3	Domestic	Copper tube
	Bearing		JAPAN NACHI	World famous brand, High accuracy, High quality
Electrical appliances	CNC system	1	Japan FANUC	Top brand of CNC
	Servo motor	3	Japan FANUC	Top brand of CNC
	High precision rotary table	1	Taiwan Central Star	Taiwan famous brand, High accuracy
	Spindle motor	2	CTB/MK	Multitronic, Meet the requirements of different processing speed
	AC contactor		Schneider	Famous brand, steady property
	Relay		Schneider

Duplex cnc milling machine ,made in china,gained 38 patent certifications
12 years experience, 3years guarantee.
high efficiency, high accuracy , high quality.
GooDa CNC series milling machine are your best choice!
Contact me:
International technician,sales& Service:
Phone No.:+86 13686675212
Tel: +86-0769-89760601
Fax: +86-0769-81502791
Dongguan GooDa Machinery Manufacturing Co.,Ltd
Address: No.137, F Building Kairuifeng Industial Park, Changdong RD,Banshi Village,Changping Town, Dongguang City, GD, China
Website: http://goodacnc.en.made-in-china.com

---
