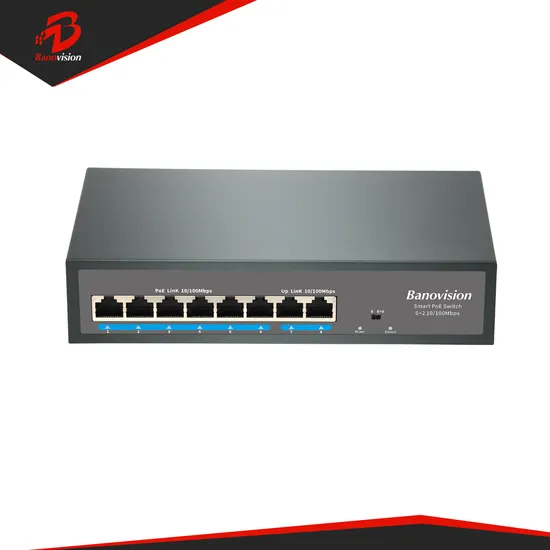

Banovision Poe Switch 4 8 16 24 48 Ports 10/100m & Gigabit Unmanaged 52V Ethernet Fiber Switch Poe IEEE802.3af/at Suitable CCTV, NVR

Product Description

6POE+2FE 250m Long Distance
POE Switch (Built-in)
Features:
* 6*10/100mbps POE port,2*10/100mbps UP Link port
* 250m Distance
* Support IEEE802.3AF/AT
* Whole Power:78W(52V 1.5A)
* All port supported by MDI/MDIX auto flip and self negotiation
* Supply 6 10/100Mpbs adaptive high speed forwarding data packet non-lost port
* Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode
* Each port max. power supply reached 30W.
Application:
* Wireless Access Point
* IP Camera
* IP Phone
* Computer Networks
Specification:

Model	BN-PK0622M
POE Port	1 to 6 support IEEE802.3AF/AT Standard
Output Power	15.4W/30W IEEE802.3af/at
Power Pin	1/2+,3/6-
Whole Power	≤78W (52V 1.5A)
POE Protocol	IEEE 802.3af/IEEE 802.3at
POE Type	End-span
Power Distance	≤250m
Network Standard	IEEE 802.3, IEEE802.3u,802.3x,802.3af/at
Network Medium	10/100BASE-TX:5 class and above non shielded twisted pair
Data Distance	≤250m
Switch Capability	1.6Gbps
Forwarding Mode	Store and forward
Forwarding Rate	10BASE-T:14880PPS/port
	100BASE-tx:14800pps/port
MAC Address	MAC address table 1K
Port Function	Power priority mechanism, fast and forward, MAC automatic learning and aging
	IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
LED Indicator	LINK/ACT.100Mbps;POE Status Indicator; Power indicator;Extender
Working Environment	Working temperature:-10°-- 55°C
Weight	1kg
Size	200mm*118mm*44mm(L*W*H)

---
