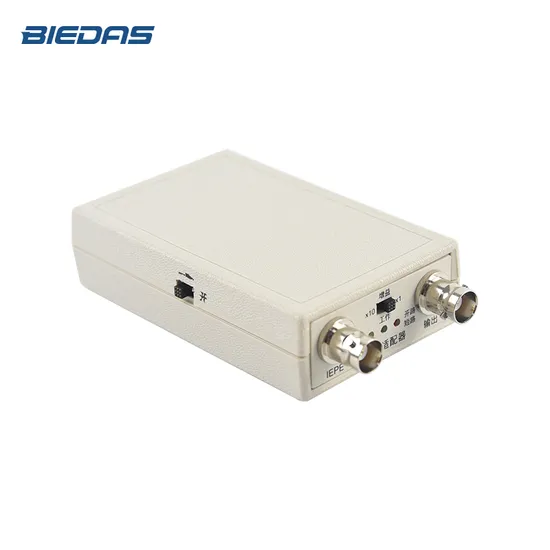

Biedas Ie01 Single Channel Constant Current Source Iepe Signal Conditioner

Product Description

IEPE Signal Conditioner Product Description Features
Small Size, Light weight Wide Frequency Range Operation Status LEDS Low-Battery Warning Internal/External Power Supply Proper Operation Voltages For IEPE Transducers Selectable Gain 1 or 10 Product Parameters

Input channel	One
Constant current output to transducer	2mA
Constant current compliance voltage	+24VDC
Input voltage	≤±5Vp (ICPE sensor output)
Coupling capacitor	10mF
Upper frequency (-5%)	100kHz
Lower frequency (-5%)	0.05Hz
Gain	1 or 10 Selectable Switch
Output amplitude	≤±5Vp
Accuracy	≤±1%
Noise	≤1mVrms
Temperature	Operate temperature: 0°C~40°C Storage temperature: -55°C~85°C
Moisture	Maximum 80%R.H.
Power supply	Internal: One 9V battery External: 5 to 20VDC (Right hand side input)
Battery operate time	About 10 hours
Dimensions	(25mm(H)´60mm(W)×100mm(D)
Weight	About 300grm
Connection	Input: BNC, Output: BNC
Accessories
Input/output cables	One each
Power supply cable	One

Detailed Photos
Biedas Ie01 Single Channel Constant Current Source Iepe Signal Conditioner
Biedas Ie01 Single Channel Constant Current Source Iepe Signal Conditioner
Biedas Ie01 Single Channel Constant Current Source Iepe Signal Conditioner

---
