Mini 3G SDI Fiber Extender 1080P 3G-SDI Over Fiber Converter Broadcast Level SDI Video Fiber Optic Converter Include SFP Module Single-Mode Single Fiber 20km with RS485 Tally Loop Output

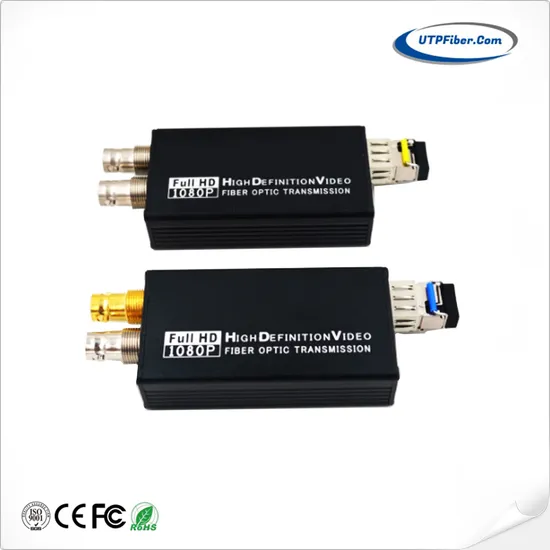

UF-3GSDI-1V Series Mini 3G-SDI Fiber Converter supports 1-channel 3G-SDI Video (audio embedded) & Tally or Reverse RS485 signal transmitted via fiber optical cable, and monitor the signal locally over a 3G-SDI loop output. The 3G-SDI Video over Fiber Converters includes one transmitter and one receiver for 3G-SDI signal.
Features Each channel includes 8-channel audio embedded; Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A); Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s Directly compatible with HD-SDI camera systems Long transmission capability up to 80 km Hot swap and hot plug; Handle all Pathological patterns, fully digital non-compression broadcast level transmission; LED Status Indication to monitor the working conditions; super optic dynamic range and free of adjustment; 1470~1610nm CWDM wavelengths optional; industry level ultra-broad temperature range (-20ºC~+70ºC), adaptable to various environments Application
| Fiber Optical interface |
| Fiber interface | Simplex LC |
| Transmission distance | 550m-20Km |
| Wavelength | 1310nm/1550nm |
| Video |
| Video interface | BNC |
| Video input/output impedance | 75Ω |
| Video input/output voltage | Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
| Video Bits Rate | Max 3.2Gb/s |
| Differential gain (10%~90% APL) | <1% |
| SDI format support | 625/25 PAL |
| 525/29.97 NTSC, 525/23.98 NTSC |
| 720p50, 720p59.94 |
| 1080i 23/24/30/50/59.94 |
| 1080P 23.98/24/30/50/60 |
| Video SDI standard | 270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
| SMPTE425M3Gb/s Mapping(3G-SDI) |
| SMPTE424M 3Gb/s serial interface(3G-SDI) |
| Data |
| Physical interface | Industrial standard screw terminal |
| Data type | Tally or Reverse RS485 |
| Frequency/Rate support | Max. 115200bps for RS422
Max. 57600bps for RS485 |
| BER | <10-9 |
| Electrical |
| Power adaptor | DC 5~25V |
| Power consumption | <5W |
| LED Indicator |
| SDI | SDI video |
| P/T | Power Supply |
| Mechanical |
| Dimensions (LxWxH) | 80 x 40 x 20 mm |
| Weight | 1KG/pair |
| Casing | Aluminum Case |
| Mounting Options | Desktop |
| Environmental |
| Working Temperature | -20ºC~+70ºC |
| Storage Temperature | -40ºC~+80ºC |
| Working Humidity | 0~95% |
| MTBF | ≥100000 hours |
| Model | Description |
| UF-3GSDI-1V1T-MM | Mini 3G-SDI Fiber Converter with Tally and loop out, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs |
| UF-3GSDI-1V1D-MM | Mini 3G-SDI Fiber Converter with Reverse RS485 and loop out, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs |
| UF-3GSDI-1V1T-20 | Mini 3G-SDI Fiber Converter with Tally and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
| UF-3GSDI-1V1D-20 | Mini 3G-SDI Fiber Converter with Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
| UF-3GSDI-1V1T-40 | Mini 3G-SDI Fiber Converter with Tally and loop out, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs |
| UF-3GSDI-1V1D-40 | Mini 3G-SDI Fiber Converter with Reverse RS485 and loop out, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs |
