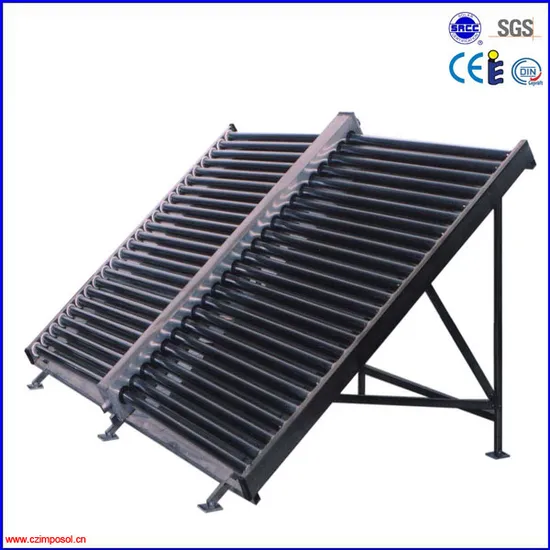

Project Vacuum Tube Non Pressurized Solar Collector

Product Description

Specification of whole system:

Main specifications

Inner manifold : SUS304-2B or 316L food-grade stainless steel , Laser welding technology

Vacuum tube : high-efficient coating 47*1500/58*1800mm vacuum tube, hail-resistance: 25mm - 40mm

Outer manifold : painted/Aluminum alloy/SUS 304 stainless steel, free welding technology

Insulation layer: high density polyurethane , 72 hours efficient heat preservation

Frame : stainless steel/Alumimum alloy/SUS 304 stainless steel, anti-corrosive and anti-ultraviolet

Connection options : 3/4' or 1' stainless steel

Rubber components : HTV silicone rubber(UV stabilised)\

Reflector : Aluminum component/stainless steel


Features

Relies on the natural circulation of water between the collector and the manifold

Beautiful appearance, high efficiency and lower cost solar collector

Suitable for different climates especially for warm area

The collector can be applied in the domestic heating system or commercial project such as hotel , school , hospital , swimming pool and solar cooling etc

model	lighting area()	vacuum tube			supply water capacity(liter)	20GP/40HQ loading Qty(sets)
		(mm)	L(mm)	Qty(pcs)
IPRB F 581820	2.9	58.0	1,800.0	20.0	170-200	90/220
IPRB F 581830	4.3	58.0	1,800.0	30.0	250-300	65/157
IPRB F 471524	2.4	47.0	1,500.0	24.0	175-200	126/307
IPRB F 471530	3.0	47.0	1,500.0	30.0	220-250	92/223
IPRB F 581850	7.2	58.0	1,800.0	50.0	420-500	43/105
IPRB F 581860	8.6	58.0	1,800.0	60.0	500-600	38/93
IPRB F 471550	5.0	47.0	1,500.0	50.0	360-420	70/169
IPRB F 471560	6.0	47.0	1,500.0	60.0	440-500	62/149

Why Choose Us?

1.Our Product is economic and environmental;

2.Our Product is durable and has a long service life;

3.We have rich production experience.The quality of Product is reliable;

4.We have a perfect production process and strict quality control system;

5.We have perfect service system and will give you the best service.

6.Professional Production Line


OEM is welcomed.





Company introduction:



Changzhou Imposol New Energy Co., Ltd. Is top ten in china for exportation.with more and more customers from Europe,Australia,Africa and Asia joinning us.



With products' high performance and reasonable price backing us, With products'quality and company's credit supporting us,We believe that we are turning the world greener day by day-together!



As an OEM factory in china,We specialize in manufacturing various types of solar water heater,solar collectors and vacuum tubes.Our product range include;compact and split,low pressure and high pressure vacuum tube solar water heater;thermosyphon;heat pipe,Upipe and SCHMV tube solar collector;flat plate solar water heater and solar collector.



We have also designed and carried out some wonderful solar water projects for hospitals, schools,factories and familieS as well as our own design for new products.

---
