Paper Pulp Stainless Steel Wire Mesh Cylinder Mould

Product Description

Product Description
Paper Machine Cylinder Mould is used in the forming section of paper making machines and thickener, our Cylinder Mould features in high speed, high strength, low power consumption, long life time for wire. LEIZHAN employ proprietary manufacturing techniques, sound engineering principles and a team effort to develop the best cylinder mould for your application.
A complete set of Cylinder Mould Former include: cylinder mould, couch roll , guide roll, felt foil box ,movable spray pipe ,frame and base plate .Foundation part including sole plate, anchor bolt ,nut etc. foundation drawing content : reserve hole position ,size, elevation, the static and dynamic load of each driving point. it is only for technical reference. the sole plate material is cast iron HT200 , through 2 times again eliminate stress processing.

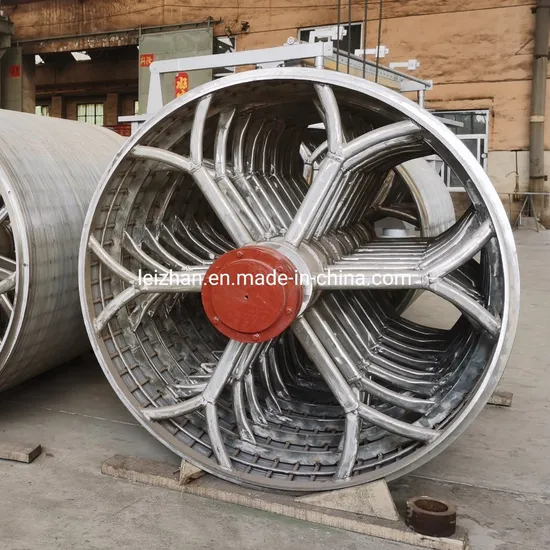

Detailed Photos

Product Parameters
Surface construction is very important in designing the right cylinder mould for your specific machine.
Cylinder size, speed, loading, dewatering requirements and open area are some of the variables we consider when recommending a surface construction and face wire selection that will enable your cylinder to operate at maximum efficiency.
Three examples of surface construction, using various sizes and style of top rods and winding wire, illustrate how open area can be altered.Our years of experience in constructing cylinder moulds enable us to recommend the best design for your machine.

Type	Common	Winding	String Chip	Air exhaust	Vacuum
Diameter	1000~5000mm
Width	1000~8000mm
Material	Cast Steel, Stainless Steel, Copper
Winding Type			String Chip Type
Slice being welded on every rod and slice in fall Winding type cylinder mould is widely being used as its high stability and long service life compared to string chip type.			Rod goes through the slice
