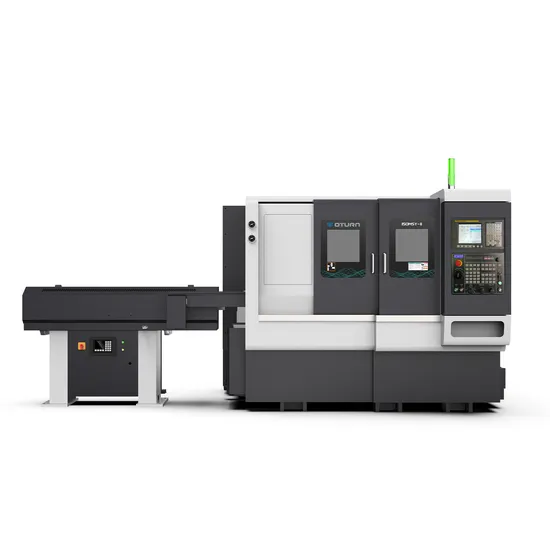

Oturncnc 5 Axis Swiss Machine Ty150msy-II Sub Spindle Double Spindle Swiss Type CNC Lathe with CE/ISO

Product Description

Product Description
High-strength HT300 one-piece structure casting iron bed, 30-degree step type flat rail structure, application of finite element analysis, excellent overall mechanical rigidity and stability, and can maintain long-term reliable accuracy, processing stability and tool life, stress relief treatment improve accuracy and stability, high-strength roller rail design, drive system adopts screw pre-tension design, improve response rigidity.
Both ends of the workpiece can be processed at the same time in one clamping, which greatly simplifies the manual operation, increases the output and reduces the process. The second spindle is capable of full turning and can express workpieces during machining, reducing cycle time.
1.Direct drive synchronous electric spindle device: magnetic ring type incremental encoder (Sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds.
Effectively eliminate the vibration of spindle, and the deflection accuracy of the nose end is within 0.002mm. Improve the surface finish of the workpiece.
The rear-mounted rotor is used to facilitate installation and maintenance.
The spindle motor is equipped with cooling system to suppress the influence of thermal displacement and ensure a constant working temperature of the spindle. The spindle system has passed the strict dynamic balance test. It has good precision retention, high rigidity and high efficiency, so that the machine can not only complete finishing machining, but also rough machining and heavy cutting for users. It is especially suitable for mass production of complex shapes and high finish product.
2.High rigidity integral servo power turret. With rapid and precise tool change performance. The tool holder installation used high-rigidity BMT interface, and the power transmission shaft is driven by servo spindle motor.
3.Y-axis adopts 100MM stroke (±50 from the center line), capable of eccentric milling, drilling and tapping, equipped with a high-torque power turret and a servo-driven C-axis, capable of processing complex parts.
4.The machine is equipped with THK linear guide rail and ball screw. The heat-treated and precision-ground ball screw can ensure the best precision and durability. Each axis adopts a direct transfer shaft structure and a double-anchor pre-relay method, which can minimize thermal displacement and greatly improve machining accuracy. High rigidity, large size, and heavy-duty linear slide rails can keep the accuracy of the machine unaffected when it is impacted, the displacement is smooth and the noise is low, which can prolong the service life.
5.Standard configuration FANUC system, and the feed drive adopts FANUC servo motor.
6.Perfect hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components, greatly reducing the failure rate. The design of the hydraulic and lubrication system is simple and reliable.
7.Using Taiwan rotary chuck, oil cylinder and automatic chip removal device, which can greatly reduce the labor intensity of the operator and realize safe and efficient production. The above functional components can be controlled by programming. At the same time, various special fixtures can be designed and installed according to the special requirements of users. Product Parameters

Item	Name	Unit	SY208MSY/E
Travel	The largest diameter rotating bed	mm	Ф380
	Max. processing diameter	mm	Ф100
	Max.Swing Over Cross Slide	mm	Ф160
	Max. processing length	mm	150
Main-Spindle Hydro cylinder Chuck	Spindle nose	/	A2-5
	Maximum speed of spindle	rpm	5500
	Hydraulic Cylinder/Chuck	/	6"/5"
	Spindle hole diame	mm	Ф56
	Bar diameter	mm	Ф45
	Main-Spindle power	kw	17.5
	Main-Spindle direct drive motor torque	Nm	62-125
Sub-Spindle Hydro cylinder Chuck	Spindle nose	/	A2-4
	Maximum speed of spindle	rpm	6000
	Hydraulic Cylinde/Chuck	/	6"/30
	Spindle hole diame	mm	Ф46
	Bar diameter	mm	Ф32
	Sub-Spindle power	kw	11
	Sub-Spindle direct drive motor torque	Nm	27-66
X1/Z1/Y/X2/Z2 axis feed parameter	X1/Z1/Y axis motor power	kw	1.8/1.8/1.8
	X2/Z2axis motor power	kw	1.3/1.3
	X1/Z1 axis travel	mm	135/370
	X2/Z2 axis travel	mm	215/400
	X/Z/Y/S axis rapid speed	mm/min	30/30/6/30
	positioning accuracy	mm	±0.005
	Repeatability	mm	±0.003
	X1/Z1 Slide rail type	mm	(Roller)35/35
	X2/Z2 Slide rail type	mm	(Roller)30/30
Servo drive cutter parameters	The cutter tower type	pcs	BMT45-12T
	Power cutter tower motor	Kw	4.0kw
	Y axis travel	mm	80(±40)
	Max.speed of	rpm	5000 ER20
	The cutter biock specifications	mm	20x20
	Circular cutter holder specification	mm	Ф32
	The adjacent tool change time	sec	0.15
Servo drive cutter parameters	The cutter tower type	pcs	NC8T
	The cutter biock specifications	mm	25x25
	Circular cutter holder specification	mm	Ф32
Outline dimensions	Machine size	m	2.2x2.1x1.7
	Machine Weight	kg	3500
Other	Cutting fluid tank volume	L	150
	Volume of hydraulic unit box	L	40
	Hydraulic oil pump motor power	kw	1.5
	Volume of lubricating oil tank	L	2
	Auto lube pump motor power	W	50
	Cooling water pump power	W	750
