2020 High Precision Carbide Tools Saw Blade Grinding Machine

US$999.00-13,000.00 1 Unit (MOQ)

Basic Info.

Model NO.
TF 500
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Plunge Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Saw Blade Dia
110~510mm
Sawblade Thickness
0.5~8mm
Top Angle
7°-25°
Chamfer Angle
5°~ -5°
Hook Angle
-5°~28°
Bore Diameter
12~120mm
Tip Length
1~15mm
Tip Width
1~10mm
Wheel Diameter
125*32mm*25mm
Wheel Speed
5000r/Min
Grinding Speed
3~20mm/S
Power
3kw
Weight
1200kg
Voltage
AC 380V-50Hz/220V-60Hz
Transport Package
PE Bag + Wood Carton
Specification
1700 *1250 *1820mm
Trademark
TORSEL
Origin
China
HS Code
8460310000
Production Capacity
5000units/Year

Product Description

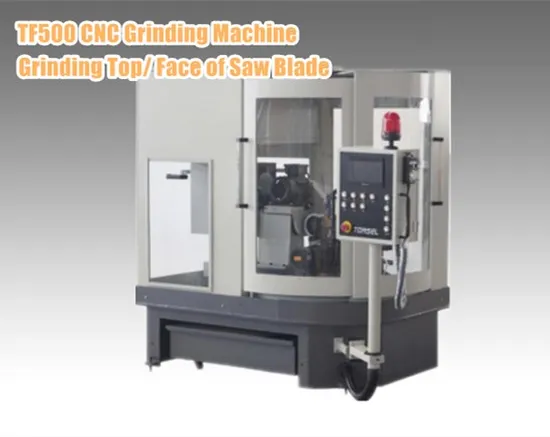

TF 500 CNC TOP & FACE of Saw Blade Grinding Machine High-level productivity & precision grinding machine for carbide tools.

Advantages of TOP & FACE Saw Blade Grinding Machine • More precision- grinding precision: <0.03mm,be impressed by the higher accuracy. • More efficiency- experienced productivity on a higher level • More user comfort- simplify your work • More flexibility-for precision in any requirement
CNC Control- be flexible to control precision as requirement. 3-D Graphics Grinding Machine Technical Premeter
Saw Blade Diameter 110~510mm
Saw Blade Thickness 0.5~8mm
Top Angle 7°-25°
Chamfer Angle 5°~ -5°
Hook Angle -5°~28°
Bore Diameter 12~120mm
Pitch 2~65mm
Tip Length 1~15mm
Tip Width 1~10mm
Wheel Diameter 125*32mm*25mm
Wheel Speed 5000r/min
Grinding Speed 3~20mm/s
Power 3KW
Dimensions 1700 *1250 *1820mm
Weight 1200kg

Configuration
Ball Screw IF (Germany)
Adjust LM Guide HWIN roller LM guide
Pneumatic Parts SMC
Servo Motor Inovance
PLC OMRON

FAQ 1. How to chooce best saw blade grinding machine? - Best grinding machine process tools with higher precision & long service life. 2. How is the performance of TORSEL saw blade grinding machine? - TORSEL saw blade grinding machine process tool with excellent precision <0.03mm,the service life is upto 7-15 years. 3. Whats your cooperation companys?
