Product Description
Product Description

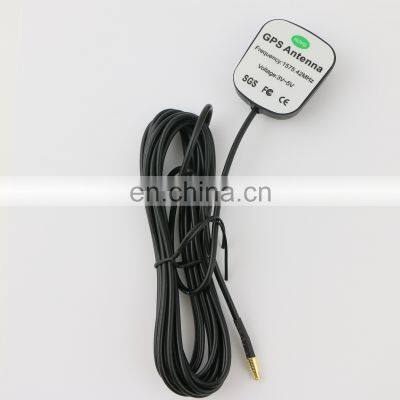

DescriptionPlease kindly contact us directly for customized requirement on the connectors, cable length, mounting, ect. 1575.42MHz Active Car GPS Antenna with Magnetic Mounting, 3 Meters RG174 RF Cable, MCX ConnectorApplications: * GPS Navigation, Positioning, Anti-theft for Automobile, Car, Bus, Trailer, ect; * GPS Positioning for M2M Applications, Environmental Monitoring, Bridge Mapping, ect. Highlights: * Active GPS antenna with MCX male connector; * Magnetic Mounting (Please contact us for the Adhesive mounting option); * CE RoHS compliant; * Lightweight in 45x38x15mm, 60g. * Cable length: 3 meters; * DC Voltage: 3V to 5V;Model No.GPS-ACableRG174, Length=3M or customizedCable Gain±2dBiDielectricCenter Frequency1575.42±3 MHzV.S.W.R 2:1Band Width±5 MHzImpendence50ΩPeak Gain>3dBic Based on 7×7cm ground planeGain Coverage>-4dBic at -90°<0<+90°(over 75% Volume)PolarizationRHCPLNA/FilterLNA Gain Without Cable28dB TypicalNoise Figure2.0dBFilter Out Band Attenuation(f0=1575.42MHz)7dB Min f0+/-20MHz; 20dB Min f0+/-50MHz; 30dB Min f0+/-100MHzV.S.W.R<2.0DC Voltage3V to 5VDC current7-10MAMechanicalWeight60 gramSize45X38X15mmCable TypeRG174 Cable, 3 Meters (customized)ConnectorSMA Male Connector (SMB, MCX, MMCX, ect customized)MountingMagnetic Mounting (Adhesive Mouting customized)HousingBlackEnvironmentalWorking Temp-40℃~+105℃VibrationSine sweep 1g(0-p)10~50~10Hz each axisHumidity95%~100%Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
