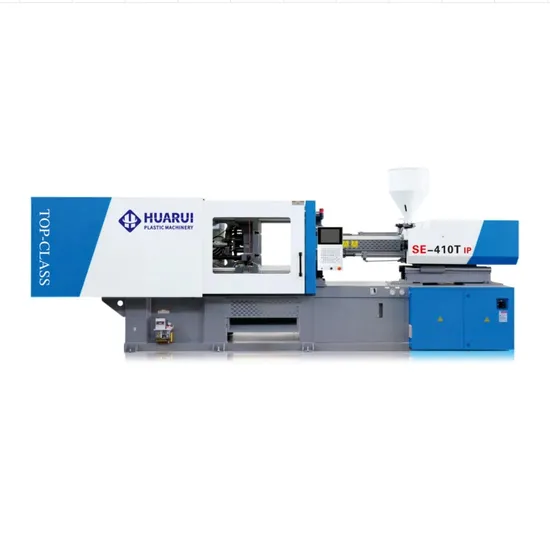

410ton Full Automatic Injection Molding Machine for Plastic Bottles Pet Preform Mineral Water Bottle Production

Product Description

Plastic Production Fruit Frame Basket Big Box Pot Basin Injection Molding Machine
Product Parameters

Se-410T/IP Plastic Injection Molding Machine Information
Item		Unit		A B C
Screw diameter		mm		85
Theoretical shot volume		cm³		2128
Shot weight (PET)		g		2468
Shot weight (PET)		oz		87.1
Length/Diameter ratio		L/D		25
Injection pressure		Bar		1348
Injection rate		cm³/sec		693
Max.screw speed		rpm		133
Clamping force		KN		4100
Max.daylight		mm		1120*1070
Open stroke		mm		740
Space Between Tie-bars		mm		770*720
Min mould dimension		mm		300
Mould thickness range		mm		800
Ejector force		KN		140
Ejector stroke		mm		220
No.of ejector pins		unit		13
Max.motor power		KW		61
System pressure		MPa		175
Heater input power		KW		41
Oil filling capacity		L		500
Machine size		M		8.5*2.0*2.7
Net weight		KG		16000

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
