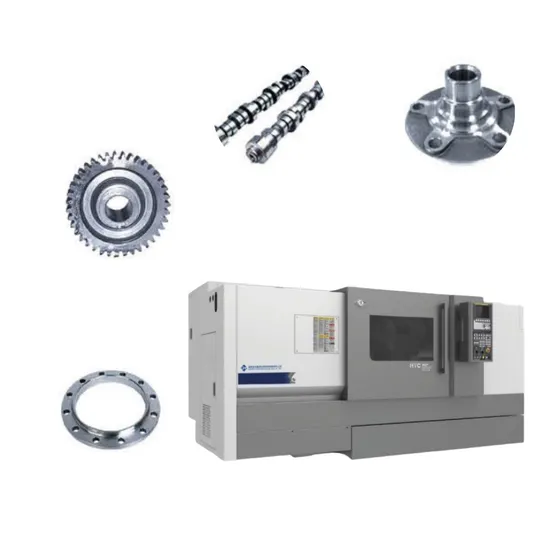

HTC40p China Smtcl CNC Lathe for Metal-Cutting

Product Description

Features:
The guide rail of the machine tool completely adopts quench-hardened sliding guide rail, ultra-large two-shaft and tailstock guide rail span, so that rigidity of the machine tool is raised by 50%.
Torque is increased by 70.6%.
Standard configuration of A2-8 spindle is realized for the specifications at the same price, cutting diameter is increased to Φ500mm, swing diameter is increased to Φ600mm , max load capacity is increasd by 30%, and heavy cutting of single side is 7mm.

Item	Unit	HTC40P
Length specification	mm	1000	1500
Max swing diameter over bed	mm	Φ600	Φ600
Max cutting length	mm	1000	1500
Max cutting diameter	mm	Φ500	Φ500
Max swing diameter over cross slide	mm	Φ400	Φ400
Spindle nose mode and code	-	A2-8	A2-8
Spindle bore diameter	mm	Φ80	Φ80
Max bar stock passing diameter	mm	Φ50	Φ50
Headstock
Spindle speed range	r/min	50-3500	50-3500
Max output torque of spindle(GSK988TA)	Nm	302	302
Spindle speed steps	-	Infinitely variable speeds	Infinitely variable speeds
Output power of main motor ZJY265A-15AM	kW	18.5(30 minutes)/15(rated)	18.5(30 minutes)/15(rated)
Chuck
Chuck diameter/type	inch	8''/solid	8''/solid
X-axis travel	mm	270	270
Z-axis travel	mm	1010	1510
X-axis rapid traverse speed(sliding guide rail)	m/min	15	15
Z-axis rapid traverse speed(sliding guide rail)	m/min	15	15
Tailstock sleeve travel	mm	100	100
Tailstock sleeve taper	morse	4#	4#
Tailstock travel	mm	-	350
Standard tool post type	-	Horizontal 12-position	Horizontal 12-position
Tool size
Cylindrical turning tool	mm	25x25	25x25
Boring toll bar diameter	mm	Φ40/Φ32/Φ25/Φ20	Φ40/Φ32/Φ25/Φ20
Whether cutter head is able to select cutter handily	-	Yes	Yes
Max load capacity
Disc workpieces	kg	300	300
Shaft workpieces	kg	600	600
Machine weight	kg	5500	6000
Overall dimension	mm	4100x2050x1960	4600x2050x1960

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
