Agricultural Equipment 1bzd Series 2.8-3.8m Width Hydraulic Opposed Heavy Duty Disc Harrow for 80-160HP Tractor

Product Description

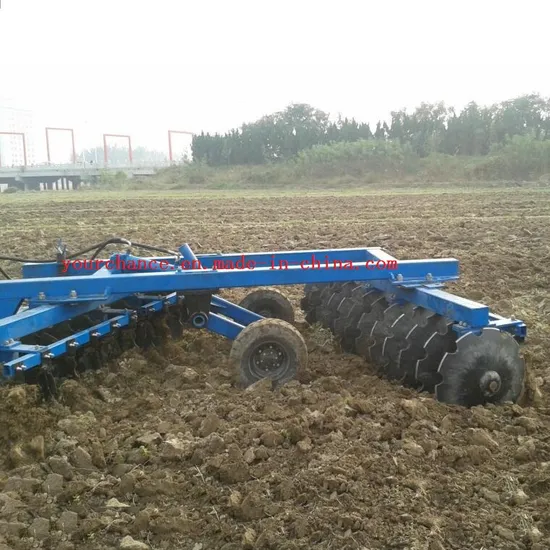

Agricultural equipment 1BZD series 2.8-3.8m width Hydraulic Opposed Heavy duty Disc harrow for 80-160HP Tractor
Main Features and Usage:
1BZD Series Hydraulic Opposed Heavy-duty Disc Harrow is adopted frame type symmetrical structure, can eliminate the deflected tractive force produced by the implement on the tractor during the working process.
This harrow is suitable for cleaning stubble before tillage and breaking the soil after tillage in the waste land, marsh and brush land and heavy soil.
Main Specification and Technical Parameters :

Model	1BZD-2.8	1BZD-3.3	1BZD-3.8
Overall dimension (mm)	5120*2700*1500	5260*3200*1500	5330*3680*1500
Working width (mm)	2800	3300	3800
Working depth (mm)	180~220
No.of blades (pcs)	24	28	32
Weight (kg)	2050	2600	3100
Matched power(hp)	80~100	100~120	120~160

1BZD Series Disc harrow main Features and Specification :
Disc harrow by Iron crate packing:
High quality Disc harrow have ISO,CE, PVOC COC, CO etc certificates:
Best price will be quoted for you as soon as receive your Requirement !

---
