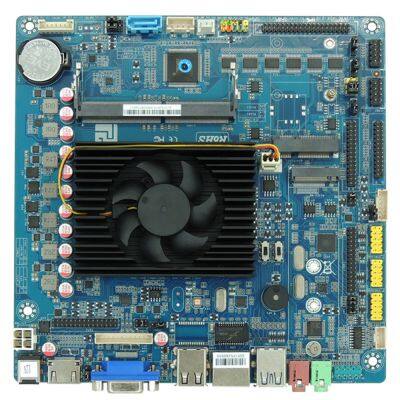

Mini-ITX Motherboard Intel Jasper Lake Quad Core N5105 CPU 16GB DDR4 HDMI EDP Mainboard for POS

Product Details

Product Description

Product Description
Mini-ITX Motherboard Intel Jasper Lake Quad Core N5105 CPU 16GB DDR4 HDMI EDP Mainboard for POSSpotlights
Low power consumption Intel Jasper Lake quad core N5105 processor, 2.0GHz, TDP 10W
HDMI/VGA/LVDS/eDP, multiple display IO/interface for selection
Single channel DDR4 So-DIMM 2400/2666MHz memory, up to 16GB
M.2 NVME/SATA SSD storage, and SATA 3.0
Specification
CPU: Intel Jasper Lake N5105
BIOS: UEFI
Memory: 1*SO-DIMM DDR4
Storage: M.2 NVME/SATA SSD, SATA 3.0
Ethernet: 1*RJ45 GBe LAN
Expansion: M.2 2230 WIFI/BT
Display: 1*HDMI, 1*VGA, 1*LVDS/2*eDP(inner 30pin interface)
Serial port: inner COM RS232 interface
USB: 2*USB2.0/2*USB3.0
Audio: 1*AUDIO Jacket
Power: 12VDC input
Dimension: 17*17cm

---
