PVC Imitation Marble Board Plastic Extrusion Machinery

Product Description

Machine Description:

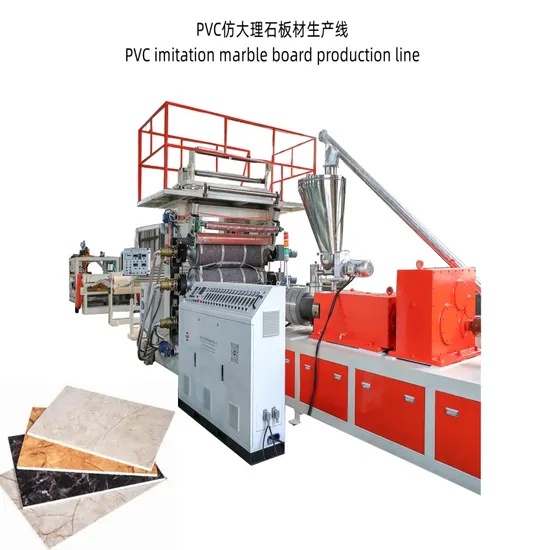

High Quality PVC Artificial Marble Sheet Production Line
MACHINE INTRODUCTION:
PVC marble board is widely used as decorative sheet. As high quality decorative sheet, it use medium density PVC microlite as raw material, copy the marbling on the surface by UV photocuring technology. It looks like real marble, has smooth surface, and high reflective rate.
MACHINE FEATURES:
This production line is consist of mixer, automatic feeding system, conical twin screw extruder, sheet mold, three-roller calander, cooling staker, haul-off machine, cutting machine, lamination device. This line has the features of compact structure, high performance. After special design, screw and barrel has the features of uniform plasticization, stable extrusion capacity, high output, long service time. Barrel adopts cast aluminum heating ring, fan cooling and precision temperature control system. Calander can adjust the sheet shape and keep product in good situation by precision design. Cutting machine has meter counting device, and cut the board in right length with no error.

Model	Unit	1220
Suitable material		PVC
Max .width of product	mm	1220
Thickness of product	mm	2--5
Extruder capacity	Kg/h	380
Installed capacity(approx)	kw	168
Dimension (L*W*H)(approx)	m	21*4*3.5
Total weight(approx)	t	17

Auxiliary equipment(optional):

Name	Quantity
SRL-Z type of hot/cool mixer	1set
Crusher	1set
Miller	1set
Air compressor	1set

SJSZ80/156 Conical Double Screw Extruder

*Screw,barrel design and manufacturing absorb European advanced technology
*Screw and barrel material:38CrMoAlA,Nitriding treated
*Adopt original famous electric components with high steady running quality.
*Omron temperature controller,ABB frequency inverter,low-voltage breaker adopts Schneid er
*Gearbox adopt high torque, low noise, hard gear tooth face gear box
Extrusion Die *Connection method of T-die and machine head: Flange type with bolt connection
*Die model: Cloth rack type
*Width of die layer: 1350mm
*Height of die lip open: 2mm-8 mm
Three-roller calender *High quality seamless steel tube
*The roller surface with quenching treatment, then chrome plated and polished
*The hardness of base material >HRC50
*The inner structure of roller : reinforced type
Oil temperature quadruple controlling system *Model :Stand alone type
*Heat-conducting medium :High temperature heat conducting oil
*Cooling medium :Soft water
*Temperature control accuracy :±1 degree
*Heating unit :1,Stainless steel electric heating rod
2,Heating power:16KW*3=48KW
Cooling roller bed bracket *Multi-group cooling rollers;
*Speed control by frequency inverter*Compacting driving by pneumatic*With adopts wear-resisting rubber roller
Rubber roller tractor *Traction method : Active friction traction
*Roller size : Φ237mm*1500mm
*Material of roller : Rubber
*Clamping method : Pneumatic clamping
*Driving method Motor :2KW
*Traction speed : 0.4m-3.5m/min
Cutting machine ( including bracket) *Max cutting width : 1500mm
*Max. Cutting length : 2500mm
*Cutting thickness range : 2mm -8mm
*Motor power : 4KW
*Fixed length switch : Photoelectric sensor
Mechanical arm
Processing Flow: 500/1000 Mixer→Auto loader→SJSZ80/156 conical twin screw extruder →Mould→ Three calender(online laminating) →Edge cutter→Hual off machine→ Transversal cutter → Conveyor→UV treatment →Final PVC marble sheet
Product Description:
Main introduction of PVC Artificial marble sheet PVC Artificial Marble Sheet/Wall Panel/Interior Decoration Board Production Line is used to make PVC imitation marble sheet whichhave marble, carpet, stones, natural scenery, stereo design on the surface. And the board is popular in the hospital, school, office buildings, shopping malls,supermarkets, transportation and other public places.
Advantages of marbel sheet/board: (1) Green environmental protection, does not contain formaldehyde,non-toxic harmless, non radioactive pollution, no pollution to the environment, belong to the green environmental protection products, can be recycled (2) PVC super wear-resistant floor surface has a layer of special by high-tech processing transparent wear-resistant layer, withwear resistance strong, so PVC floor more and more popular in the hospital,in school, office buildings, shopping malls,supermarkets, transportation and other places (3) Waterproof, moisture-proof, water is not deformation, non slip PVC material,strong anti slippery , can eliminate the elderly,children's anxiety. (4) Strong elastic shock, comfortable. (5) Safety, insulation, flame retardant, corrosion resistance, acid and alkali (6) Novel color, a variety of colors available for selection, brilliant color,natural and vivid color, any spell group shape, highlight the individuality color. (7) Installation convenience,convenient construction sawing, planing, nail, glue free paint. (8) Long service life can reach more than 20 years.
Deliver goods:
FAQ
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:T/T,L/C at sight or Made in China trade assurance.
Q3:If you will send engineer coming to our factory to install and test the machines?
A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q4:If you have CE,SGS,ISO certificate?
A4:Yes,except these,if you also need other certificates,we also can help to apply.
Q5:If we buy your machines, can you offer us wear-out spare pats?
A5:Yes,We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q6:What is the voltage?
A6 380V 50hz 3 phase or any other voltage according to client's requirement.

---
