Single Head CNC Engraving Machines

Product Description

We Supply High Quality CNC Router/CNC Milling Machine

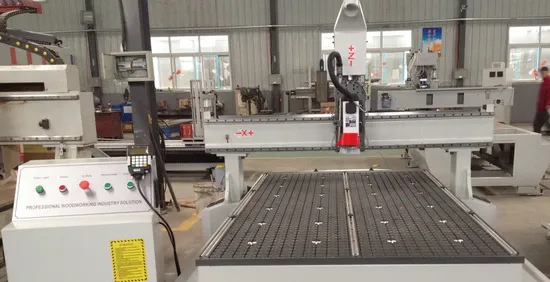

1. Products show
2.Product Description

Model	HX-1325KS (Single Spindle)	HX-1325KS-T2(Double Spindles)
Working Area(X,Y,Z axis)	1300mm×2500mm×200mm	1300mm×2500mm×200mm
Machine Body	The bed lathe is made of thick square weld steel, analyzed and designed with FEA, which ensure a more stable working table.	The bed lathe is made of thick square weld steel, analyzed and designed with FEA, which ensure a more stable working table.
Worktable	Vacuum worktable	Vacuum worktable
Spindle motor	6kw Water-cooling Spindle	6kw*2, Water-cooling Spindle
Driving motor	Step Motor	Step Motor
Vacuum pump motor	5.5kw Water cooled	5.5kw Water cooled
Max. Speed	1m/min---30m/min	1m/min---30m/min
Max. Cutting Speed	15m/min	15m/min
Tool	Ф3.175mm---Ф12.7mm;	Ф3.175mm---Ф12.7mm;
Control System	DSP Control System or Independent computer control cabinet	NC studio Control System
Software	Type3/ Artcam/ Ucancam/ Caxa/ Mastercam/ UG /JD	Type3/ Artcam/ Ucancam/ Caxa/ Mastercam/ UG/ JD
Guide way	Taiwan linear rail for X,Y,Z axis	Taiwan linear rail for X,Y,Z axis
Transmission	Helical gear rack for X Y-axis, Screw for Z-axis	Helical gear rack for X Y-axis, Screw for Z-axis
Working precision	±0.05mm	±0.05mm
Feature	Vacuum worktable can do quick workpieces feed in and feed out.	1Double spindle can working alternately or process two same workpieces at the same time. 2 High power motor improves cutting efficiency and working efficiency 3 Oblique teeth are resistant to wear and improve working precision. 4 Vacuum worktable can do quick workpieces feed in and feed out.
Dimension	3000*1900*1800mm	3000*1900*1800mm
Weight	1500kg	1600kg

3.Machine functions
With Ship-shaped machine body, improving the stability of the machine.
With leakage structure design, clear the waste material timely, improve the ball screw & linear guide using -life under extremely harsh environment.
With steel tube structure design, the machine is best choice for high speed & precision cutting, routing, engraving
Suitable for all kinds of materials processing, like solid wood, MDF, panel wood furniture, door, cabinet door WPC.
4.Machine details
5.Company Information
Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.
With more than 50 year experience in making woodworking machines, our main products are Sanding Machine, Panel Saw, Guillotine, Veneer Slicer and Grinder. We firstly put BB1342 vertical slicer into the market in China. We developed BB1135B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9001 in the industry, and also a hi-tech enterprise in Qingdao.
We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.
Our website is sandingmachine.en.made-in-china.com; you could get more information about our company and our products.

6.Packaging & Shipping

---
