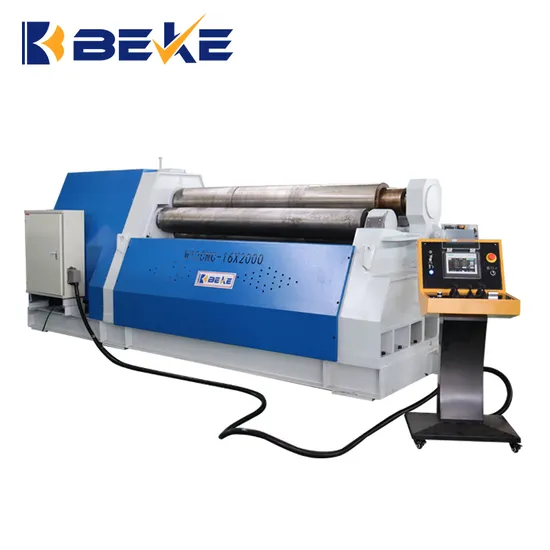

Pre-Bending High Precision W12 4 Roller CNC Metal Plate Rolling Machine

US$24,600.00
1 set
US$24,000.00
2+ set

Basic Info.

Model NO.
W12 16x2000
Warranty
2-year
Condition
New
Certification
ISO 9001:2000, CE
Automation
Automatic
Suitable for
Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Roller-Bending Machine
Model
W12 16X2000
Max. Thickness of Plate
16mm
Max. Width of Plate
2000mm
The Length of Working Rolls
2050mm
up Roller Diameter
260mm
Bottom Roller Diameter
220mm
Central Distance Between Two Bottom Roll
320mm
Min. Bending Diameter
600mm
Main Motor
11kw
Weight
4800kgs
Transport Package
Covered with Plastic Film
Specification
4300x1250x1410mm
Trademark
BEKE
Origin
China
HS Code
8462299000
Production Capacity
50 Set/Month

Product Description

Product Description
Product Parameters
MODEL W12 16X2000
Max. Thickness of plate 16mm(CS),12mm(CS)
Max. Pre-bending thickness 12mm(CS),10mm(SS)
Max. Width of plate 2000mm
The length of working rolls 2050mm
Up roller diameter 300mm
Bottom roller diameter 270mm
Side roller diameter 220mm
Minimum bending diameter 600mm
Yield limit 245MPa
Bending speed 4m/min
Main motor 11KW
Weight 8000KGS
Dimension 4700mmx1500mmx1500mm
