| US$6,795.00-8,155.00 | 1 Set (MOQ) |

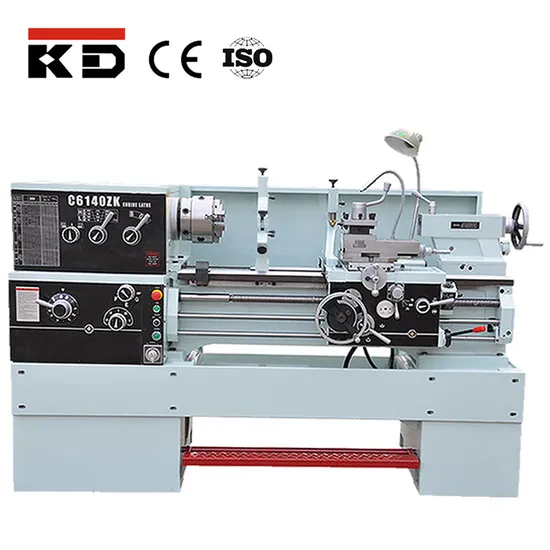

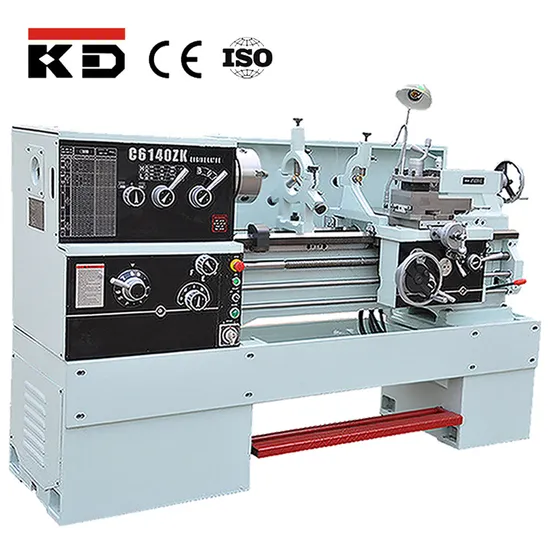

| MODELS | C6140ZK/C6240ZK | C6146ZK/C6246ZK |
| CAPACITY | | |
| Max.swing over bed | Ф400 mm | Ф460 mm |
| Max.swing over carriage | Ф255 mm | Ф275 mm |
| *Max swing over gap (gap is optional) | Ф570 mm | Ф630 mm |
| Width of bed | 312mm | |
| Max.length of workpiece | 750/1000/1500 mm | |
| Max.length of workpiece | 670/920/1420 mm | |
| Effective gap length | 200 mm | |
| SPINDLE | | |
| Spindle bore | Ф52 mm | |
| Spindle nose | D6 | |
| Taper bore of spindle | M.T.No.6 | |
| Steps of spindle speed | 12 | |
| Range of spindle speed | 40~1800 rpm | |
| THREAD RANGE/NUMBER | | |
| Metric pitch threads | 0.5~20mm/ 24 | |
| Inch threads | 72~1-5/8 TPI/ 61 | |
| Module threads | 0.25~10M.P/ 20 | |
| D.P.Threads | 96~3-1/4 D/ 45 | |
| FEED | | |
| Range of longitudinal feeds | 0.04~2.46 (0.0015″~0.0913″) mm | |
| Range of cross feeds | 0.03~1.23 (0.0006″~0.0365″) mm | |
| TAILSTOCK SLEEVE | | |
| Taper bore | M.T.NO.4 | |
| Max travel | 120 mm | |
| External diameter | Ф60 mm | |
| OTHERS | | |
| Size of tool shank | 20×20 mm | |
| Max travel of cross slide | 240 mm | |
| Max travel of compound rest | 130 mm | |
| Main motor power | 4/5.5 kW | |
| Overall dimensions(L×W×H) | 2140/2360/2860×1000×1200 mm | |
| Net weight | 1730/1810/1970 kg | 1780/1860/2020 kg |
