Double Conveyor Belt Automatic Feeding Cutting Machine/Car Carpet Automatic Cutting Machine

Product Description

Product Description
Usage and characteristics:
The machine is applicable for whole-broken or semi-broken operation of various nonmetal slices materials by cutting die. For example: Such industries as plastics packing, pearl cotton packaging, sponge, rubber and printing etc.
1. "Mitsubishi" PLC controlled, with simple, prompt and accurate operation.
2. The main machine adopts double oil cylinder, double-crank connecting rod balancing, four-column precise guiding mechanism, which an guarantee that the cutting depth at every cutting position is same.
3. The pressing board carries out slow cutting when it presses downward to contact the die cutter, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.
4. The central oil supply automatic lubricating system guarantees the service life and precision of machine.
5. Double-side automatic feeding system (by servo motor ) can be allocated to enhance the production efficiency of machine twice or thrice.
6. Cutting board micro-movement device can be allocated to evenly consume the cutting board and save cost.
7. Die cutter pneumatic clamp device can be allocated to make the replacement of die cutter convenient and prompt.
Product Parameters

Model	XCLP3-100
Maximum cutting force	100 Tons
Distance from upper pressing board to worktable	50-200mm
Cutting area	1600 × 1000mm
	1400 × 1000mm
Main motor power	7.5 KW
Electric Supply Voltage	3x440/415/400/380/220/200V, 50/60 Hz
Machine weight (approximate)	8000Kg
	7800Kg

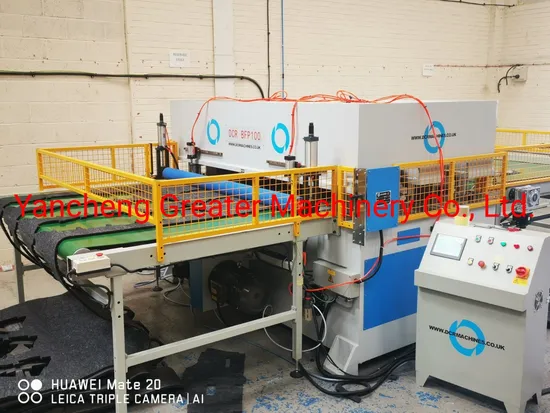

Detailed Photos
