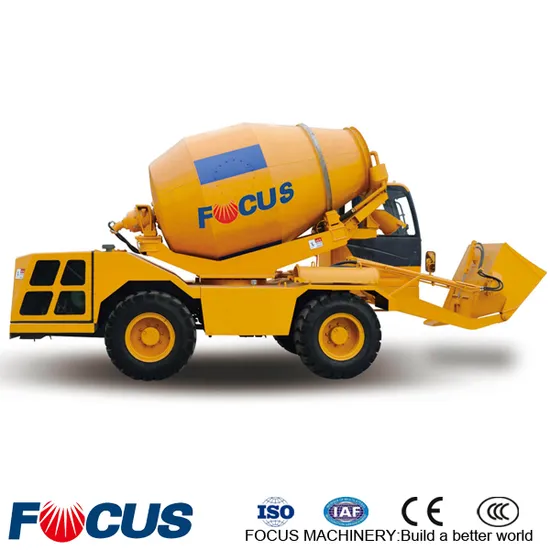

2.6m3, 4m3 Self Loading Concrete Truck Mixer

Product Description

Main Features of self loading concrete mixer:
1. Mobile, very convenient to move, especially in small project site.
2.Automatically feed, measure, mix and discharge concrete.
3. Easy to operate, high working efficiency, high mixing effect.
4. It has independent water supply system, which can ensure the high quality of concrete.
5. Only need one operator to drive, load, and mix raw material while moving it.


Product Description of self loading concrete mixer:
Self-loading concrete mixer is the combination of concrete mixer truck and concrete mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheels steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.

The efficient self loading mixer concrete mixer only needs one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits.

Model	FSB3F
Chassis	FSD3-2000
Type	Movable, self loading, mixing, transporting
Function	Concrete, sand, fertilizer compound, wet or dry feed materials mixing and discharging
Productivity	Batch≤15mins, 4Batches/Hour
Steering	4 wheels
Engine	Cummins/Weichai/Yuchai
Speed	High speed: 22.4km/h; Low speed:6.5 km/h
Wheel Base	2000mm
Tread	1833mm
Tire	10.00-20(project machine tire) 4 pcs
Volume of tank	5m3
Mixing volume	3m3
Mixing blades	Double spiral mixing blades, Feeding: Left, Discharging: Right
Inclination of tank	16°
Discharge Chute	Height:1.6m, speed≤3r/min, angle:270°
Tipping Chute	Adjustable angle, 2-segment tipping chute can be dismantled, can expand the discharging length
Shovel	Shovel capacity: 600L
Discharging of shovel	Hydraulic, electric control.
Operation handle	Electric control, Button four-way guide handle
Motor	REXROTH/China
SPEED REDUCER	FX300
Water Supply	Hydraulic driving self priming pumps Washing: High-pressure water pump wash
Washing	High pressure washing
Weighing system	Include touch screen, controller, weighing sensor, water flow sensor, etc. Main functions: 1. Weighing the materials or water when fed by fed by shovel 2. Recipes management and one key choosing function. 3. During the weighing process, auto-suggestion when it is close to the target value. 4. Data and report forms are generated automatically, easy to refer and export data by USB disk. 5. With Printer.
Voltage	Battery 24v, 200A
Hydraulic Oil Tank	Tank:300L, Summer:No.68 Hydraulic Oil, Winter:No.46 Hydraulic Oil, Very cold zone: No.35 Hydraulic Oil
Water Tank	300L
Diesel tank	112L
Mass	Curb weight:7000kg, Total weight:14200kg
Driver's cab	Streamline cab, windshield can be opened.
Dimension	Moving state: L*W*H=5400x2530x4300mm
	Shovel state: L*W*H=7100x2530x3100mm
Alarm Lamp	Standard Configuration
Radio	Standard Configuration
Air-conditioner of cab	Standard Configuration
Escape Hammer	Standard Configuration
Coat Rack	Standard Configuration
Head light	LED high light
Back light	LED high light
Forward gear	Electric control
High/low speed	Electric control
Four wheels	Standard Configuration
Hydraulic pipes	Standard Configuration

---
