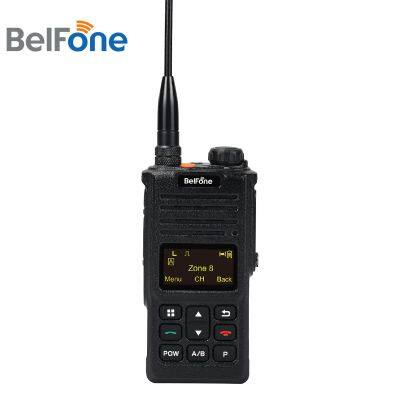

Belfone Digital Dmr VHF UHF Dual Band Portable Two Way Radio (BF-TD910UV)

Product Description

Product Description
BF-TD910UV is a tough dual-band two-way radio capable of operating on both VHF band and UHF band, though not simultaneously. Its comprehensive feature kit includes but is not limited to versatile calls, emergency calls, Lone Worker, scan/monitor, roaming, and transmission authentication. It caters to a great diversity of communication scenarios, indoor operations, outdoor operations, teamwork, emergency response, etc.
Dual-band Operation
BF-TD910UV is capable of cross-band operation, delivering more convenience and flexibility to your work and life.
IP67 Protection
Our tough BF-TD910UV is tightly sealed against dust, spills, sprays, and unexpected showers, ensuring outstanding performance in harsh environments.
Superior Audio Quality
BF-TD910UV incorporates an AMBE3000 vocoder to deliver a loud and clear digital voice, giving you an enhanced audio experience.
A Long Battery Life
BF-TD910UV has a long battery life to power you through the day.
Automatic Roaming (in digital mode)
BF-TD910UV supports digital/analog dual modes. In digital mode, BF-TD910UV can automatically roam among all sites and stay connected in an IP multi-site network.
Emergency Call
In case of emergency, just press the orange button to trigger the alarm and send for help. BF-TD910UV takes your safety into account.
Product Parameters

General
Frequency Range	VHF: 136 174MHz; UHF: 400-480MHz
Channel Capacity/Zones	3773/3000
Channel Spacing	12.5KHz/25KHz
Frequency Stability	±0.5ppm
Antenna Impedance	50Ω
Operating Voltage	7.4V (rated)
Battery	2500mAh (Li-lon)
Dimensions	55 X 35 X 115mm (LxWxH)
Weight	295g
Transmitter
RF Power Output	H: 2W/ M: 1W/L: 0.5w
FM Modulation	12.5 kHz: 8K50F3E/ 25 kHz: 16KΦF3E
4FSK Digital Modulation	12.5KHz Data Only:7K60FXD 12.5KHz Data & Voice:7K60FXE
Conducted/Radiated Emission	-36 dBm≤1GHz/-30 dBm≥1GHz
Modulation Limitation	+/- 2.5kHz @ 12.5kHz; +/- 5kHz @ 25kHz
FM Hum & Noise	-40dB
Adjacent Channel Power	≤-60dB
Audio Response	+1~ -3dB
Audio Distortion	3%
Digital Vocoder Type	AMBE3000
Digital Protocol	ETSI-TS102 361-1
Recelver
Sensitivity	Analog:0.25 uV (12 dB SINAD)/ Digital:5% BER: 0.25 uV
Adjacent Channel Selectivity	60 dB
Intermodulation	60 dB
Spurious Response Rejection	60 dB
FM Noise	-40dB
S/N	40dB @ 12.5KHz / 43dB @ 20KHz /45dB @ 25KHz
Rated Audio Power Output	1.5W
Rated Audio Distortion	≤3%
Audio Response	+1 ~ -3dB
Conducted Spurious Emission		Environmental
Operating&Storage Temperature	-30°C ~ +70'C(Operating)/-40C ~ +85°C (Storage)

---
