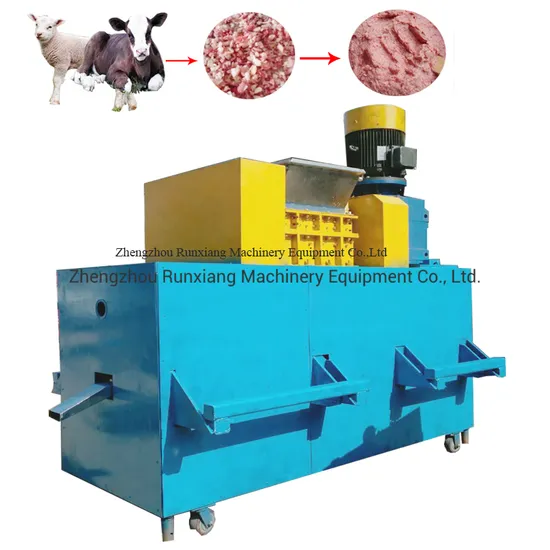

Whole Animal Cow Sheep Chicken Fish Bone Crusher

Product Description

Whole animal cow sheep chicken fish bone crusher
Product description
The whole pig crusher and the large animal carcass crusher are newly developed by our company, which are mainly used for the crushing of large animal carcasses. The machine tool frame is optimized to improve the crushing efficiency and pulverize the particles evenly. The machine is especially suitable for the smashing of large animals such as fresh pork, pig's head, pig bones, whole sheep, whole cattle and so on.

Working principle
The animal shredder shreds various soft and hard materials by cutting each other with two sets of cutter discs made of high-grade alloy steel. The working principle is that the high-power electric power drives the shaft and the cutter to rotate each other through the reduction gear box to achieve The role of material extrusion, shredding and shearing. According to the actual needs of customers, a complete set of solutions is implemented to achieve the purpose of reducing the trouble for customers and increasing the output and efficiency.

The advantage of the Machine
The animal shredder is mainly composed of a shredder blade set, a carrying case, a box bracket, a feeding system, a power system, and an electrical control system. The material enters the inside of the shredded box through the feeding system, and the box carries the shredder blade. The material is shredded, squeezed and sheared by the shredder blade, and is shredded into small pieces and discharged from the lower part of the box. And then directly into the bone mill to grind into bone mud

Technical data

Hoist machine		Type: chain Size:1520×1192×2945 Power:0.8kw Lifting capacity (kg);300-500kg Lifting speed (m/min):2.5 Lifting height (mm):1900 Weight (kg);350
Animal crushing and grinding machine		Capacity:2-3ton/h Power:55kw Weight:3ton Size"3200*3400*1200

Features
1. The design of the machine is reasonable, and the machine body is welded by high quality steel.
2, fastened with high-strength screws, solid structure and durable.
3, the host design is exquisite, the scrap material is separated design, so that the output is higher.
4. The processed pieces are evenly distributed and the loss is small. A variety of screens can be replaced at the same time to meet different needs.
5, at the same time equipped with different materials of the tool, in order to adapt to different materials, the tool can be adjusted telescopically, with blunt after grinding, multiple use, long life.
6. This machine has the advantages of beautiful appearance, simple operation, stable operation, less investment and high efficiency.
7, equipped with an extra large pulley to increase the inertia of the crusher, energy saving and powerful crushing

---
