Product Details
Product Description
Product Description

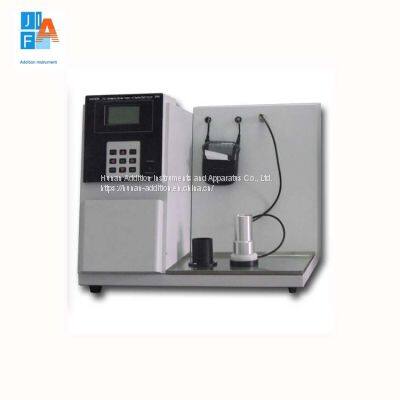

Automatic Octane Number Tester
Product model: JF503A
Product Introduction
The principle of the octane number meter is to measure the insulation permeability of gasoline octane number and the electric charge characteristics of electromagnetic induction. The result is determined by measuring the dielectric properties of the oil and comparing it with a known data model stored in memory. The induction device is very good, and it can measure the small change of the dielectric parameters. So it can detect the parameters of the octane number of petroleum products.
Technical Parameter
1. Measurement item: vehicle gasoline
2. Operating range: temperature -10℃～+40℃, relative humidity 30%～81%R.H, atmospheric pressure 64～106kPa
3. Measuring range of octane number: 40～120(ON)
4. The allowable measurement error of the octane number meter: ±0.5 (ON)
5. The floating range of the measurement result of the octane number meter: ±0.2 (ON)
6. Measuring time: 20S
7. Output mode: LCD display, print output
8. Working power supply: AC220V 50HZ
9. Power of the whole machine: 50W
10. Instrument size: 500*480*400mm
11. Net weight: 15KG
Main Feature
1. By measuring the dielectric properties of the oil and comparing it with the known data model stored in the memory, the result is determined;
2. The induction device is very good, and it can measure small changes in dielectric parameters;
3. High precision;
4. Automatic measurement and automatic printing;
>>
