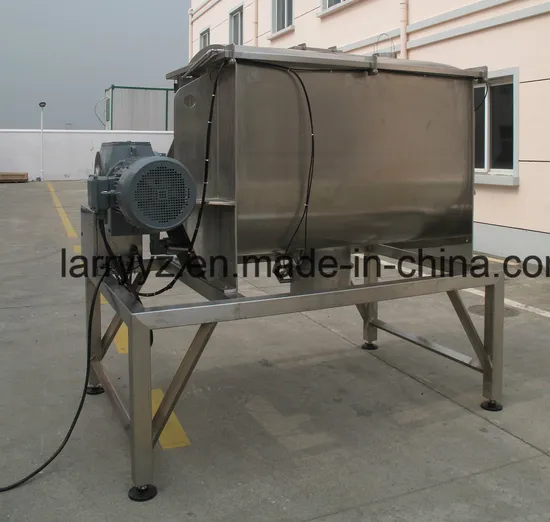

Sld1000 Double Ribbon Blender & Ribbon Blending Machine

Product Description

SLD1000 Double Ribbon Blender & Ribbon Blending Machine
Main Introduction:
The Horizontal Screw Belt Blender is a new type, high efficiency mixing equipment, are widely used in food and chemical industry.
Main features:
1. Horizontal tube body, inner & outer dual screw with special structure, running stable, best quality, low noise, long life, convenient installation, widely usage, with many kind of Blender structure, multiple function
2. Whole machine except for motor is made of stainless steel
3. With warm sheet, bearing great pressure, make easy-forming material into difficult forming after filling steam
4. For different mixing requirements, use different screw structure, rapid & thorough mixing
5. There is a split window in the body for cleaning
6. Load coefficient large, covering small surface
7. With safety screen inside cover
8. Pneumatic discharge door.
Technical parameters:

Model		SLD200	SLD300	SLD500	SLD1000	SLD1500	SLD2000
Effective Volume	liters	213L	303L	519L	965L	1376L	1856L
	Cubic foot	7.5	10.7	18.3	34	48.6	65.6
Total volume in cubic foot		10	15	25	45	66	87.5
All Volume in liters		284L	404L	692L	1286L	1835L	2475L
Rotate speed (RPM)		46	46	46	46	46	46
Blend time		0-30 min	0-30 min	0-30 min	0-30 min	0-30 min	0-30 min
Air pressure		0.4-0.6 Mpa
Overall Dimension(m)		1.37*0.83*1.65	1.55*0.97*1.66	1.77*1.1*1.86	2.39*1.32*2.18	2.72*1.4*2.31	3.08*1.63*2.45
N/w		260kg	350kg	500kg	700kg	1000kg	1300kg
Total Power (1HP=0.735KW)		4KW	5.5 KW	7.5 KW	11 KW	15 KW	22KW
Power in unit HP		5.5HP	7.5HP	10HP	15HP	20.5HP	30HP
Voltage Supply		3 Phase 208-415V 50/60Hz

---
