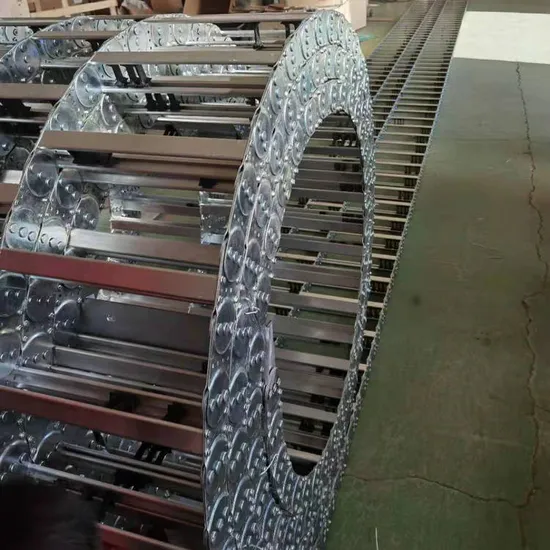

Welded Structure Steel Cable Drag Chain Bridge Type Steel Cable Carrier Enclosed Steel Cable Track Chain

Product Description

Product Description

Drag chain is suitable for the nc machine tools, machining centers, automated machinery and production lines and other kinds of machine tools, robots, transport machinery, measuring instruments, handling device and other liquid drive control as a wire, cable, gas hose protection device, can take on machine tools, machinery and equipment moving parts run harmoniously, can play a safety protection and the ability to guide, can prolong protected wire, cable, liquid, gas hose service life and reduce consumption, can greatly improve the machine tools, machinery and equipment of wire, cable, liquid, gas hose to confirm the unorderly situation existing in distribution, make it tidy and rules is arranged together, can enhance the overall artistic effect of machine tools.
Structure
Drag Chain looks like the tank chain drag chain, consists of a lot of link. Link is composed of the up and down or so four sections, each section can open, convenient installation, open the cover plate after put in the cable, tubing, the trachea, etc.

Material and Performance
Material: Reinforced nylon, good toughness and wear resistance, acid and alkali resistant ability.Operating Life: Under normal use, up to 5 million reciprocating motion.

Drag Chain Selection
High: Select the built-in cable, tubing, the trachea and conduit maximum height for reference, the height of the drag chain at least 10% of the remaining space.
Wide: Choose the built-in cable, tubing, trachea, the sum of its outer diameter for reference, the width of the drag chain at least 10% of the remaining space.

	TL 30	TL 45	TL65	TL80	TL95	TL115	TL125	TL155	TL180	TL225	TL250
Pitch	30	45	65	80	95	115	125	155	180	225	250
Bending Radius	40	50 75 90 114 145	75 90 115 125 145 185	100 115 125 145 185 200 250 300	115 145 200 250 300 350	145 200 225 250 300 350	200 250 300 350 470 500 575 700 750	200 250 300 350 450 500 600	250 300 350 450 490 600 650	400 450 600 750 800 850 1000	400 450 500 600 750 800 1000
Minimum Width O Drag Chain	40	35	50	55	60	70	80	90	100	160	190
Hight of Drag Chain	25	32	44	56	70	86	100	120	144	200	220
Length of Drag Chain	By User
Max Hole Diameter of Support Plate	10	-	30	35	48	63	68	97	110	146	166
Non-Support Range	3	4	5	8	9	10	10	10	10	12	14

Company Profile
Packaging & Shipping
MOQ: 10 meters
Payment: L/C, D/A, D/P, T/T, Western Union, MoneyGram; 30% deposits; 70% balance before delivery or against copy of BL
Delivery Time: 3-7 days for samples; Within 10 days for batch goods.
Packaging: Carton or wooden cases
Shipping: By Air or by Sea for batch goods, for FCL OR LCL; Airport/ Port FAQ
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.

Q2. Why should I choose your products?
A2. Our products are high quality and low price.

Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom.

Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.

---
