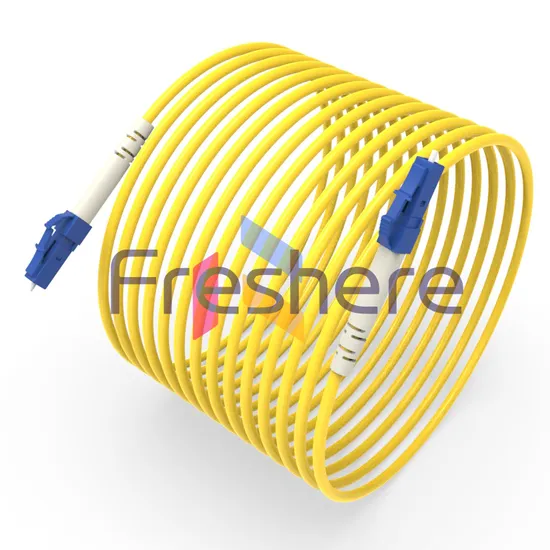

FTTH Optical Fiber Patchcord FTTH Cable Optic Pigtail Factory Product Fiber Patchcord

Product Description

Product Parameters

Connector Type	LC APC to LC APC	Fiber Grade	G.657. A1
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
Insertion Loss	≤0.3dB	Return Loss	≥60dB
Min.Bend Radius (Fiber Core)	10mm	Min.Bend Radius (Fiber Cable)	10/5D
Attenuation at 1310nm	0.36 dB/km	Attenuation at 1550nm	0.22 dB/km
Fiber Count	Duplex	Cable Diameter	2.0mm
Cable Jacket	PVC	Palarity	A (Tx) to B (Rx)
Operating Temperature	-20-70ºC	Storage Temperature	-40-80ºC

Detailed PhotosProduct IntroductionOur fiber optic patch cables are crafted from high-quality optical fiber materials, ensuring stable and efficient signal transmission. The product range includes single-mode, multi-mode, and other types, suitable for various applications such as data centers, telecommunications networks, and enterprise LANs. Every patch cable undergoes rigorous quality testing and complies with international standards, guaranteeing exceptional performance and long-lasting durability.
Technical AdvantagesOur fiber optic patch cables are manufactured using advanced techniques, featuring low insertion loss and high return loss to ensure efficient and reliable signal transmission. Additionally, the connectors are precision-engineered for seamless compatibility with a wide range of equipment. Whether for short-distance or long-distance transmission, our patch cables deliver outstanding performance.
Application ScenariosOur fiber optic patch cables are widely used in data centers, telecommunications networks, enterprise LANs, broadcasting, medical equipment, and more. Whether for high-speed data transfer, high-definition video transmission, or complex network architectures, our patch cables meet your needs, ensuring stable and efficient signal transmission.
Quality AssuranceWe understand the importance of product quality, which is why every fiber optic patch cable undergoes strict quality testing to ensure compliance with international standards. Our products are ISO9001 certified and meet RoHS, CE, and other international certifications, ensuring excellence in environmental and safety performance.
Customer ServiceWe not only provide high-quality fiber optic patch cables but also offer comprehensive technical support and services. Our professional team is always ready to assist with technical inquiries and provide customized solutions, ensuring a hassle-free experience. From pre-sales consultation to after-sales support, we are committed to delivering the best service experience.
