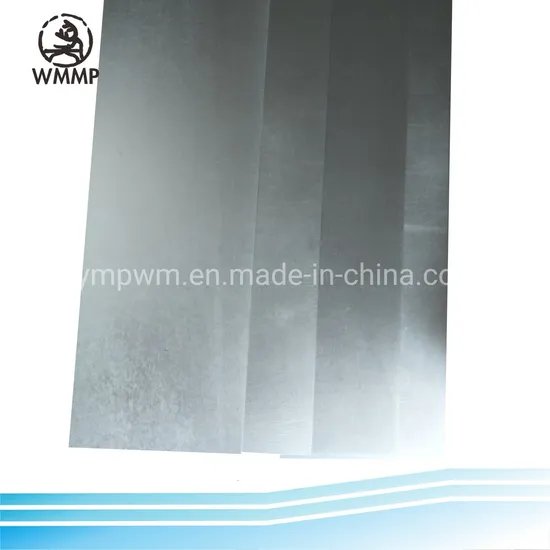

99.95% Tungsten Molybdenum Sheet& Bright Tungsten Molybdenum Sheet in High Temperature Furnace

Product Description

99.95% Pure Tungsten Foil/Strip/Sheet/Plate Product Information:
1. Tungsten Sheet Plate Application:
1) Tungsten is suitable for light, electric vacuum device, electric semiconductor
device, glass fiber kiln heating element, heat shield, boat and finished products etc
2) Tungsten Strip/Sheet/Plate also used in manufacturing electric light source and electric vacuum parts, boats,heatshield and heat bodies in high temperature
furnace,medical diagnosis and treatment equipment ;as a means of high temperature heating elementand and high
temperature structure parts;Used in producing tungsten spiral for vacuum evaporation and making tungsten sputtering target.
2. Tungsten Sheet/ Plate Specification:1) Purity: 99.95%2) Density: >19.2g/cm33) Characteristic: Melting Point: 3410 Degrees Celsius Boiling Point: 5927 Degrees Celsius
4) Available size: Thickness(0.05-80mm)*W(20-800)*L<1000mm5) Surface: Black,Alkali Wash and Polished6) Process Condition: hot roll&cold rolled
7) Flatness: ≤2%
8) Product Standard: GB/T3875-83 Or ASTM B760-86

Commodity Name	Tungsten Foil Sheet Strip Plate
Size	Thickness minimum 0.05mm
Surface	alkali washed&polished
Density	19.2g/cc
Standard	ASTM B760
Service	Accept OEM
Delivery time	15-25 days

3. Thin Tungsten Foil Size and Tolerance Information:
Tungsten Foil Size: Thickness(0.05-0.2mm)*W<200mm*Foil
Tungsten Strip/Sheet/Plate Size&Tolerance
Our molybdenum foil/strip/sheet plate describtion: 1)Purity: ≥99.95%
2)Density:>10.2g/cm3
3)Surface:black,alkali washed,grinding,sandblasting,cold rolling
4)Size:Thickness 0.05-50.0mm Width 20-800mm Length 100-3000mm
Mo sheet plates size:
Molybdenum sheet application: For producing electric light source parts,components of electric vacuum Heat shield and heat elements for high-temperature furnace Used to producing sputtering targets Processing material of molybdenum disks,sheetsandfoils
Our Mo strip shets packing&delivery:
1)paper wrapped the sheets, then plastic paper protected from moisture
2)Foam board around the the inner wooden case
3)Standard exported plywood case outside
4.Our tungsten&molybdenum plates packing Standard and safe Packing
paper wrapped the sheets, then plastic paper protected from moisture
Foam board around the the inner wooden case
Standard exported plywood case outside
5. Delivery
Sample Delivery: 7-10 days is ok Big order quantity: Usually we can supply within 20 days 6 Shipment Methods: By express(EMS,TNT,DHL,UPS,FedEx) By Sea or Air transportation By land
By YWWEN special line or other special line We also can deliver as the customers' need,send the material to the port.
More Tungsten foil/strip/sheet/plate product photoes,hope you are interested in them7. We supply other following tungsten products, Tungsten ribbon, foils
Tungsten bar , Tungsten rod with black surface or polished Tungsten wire, black Tungsten wire, polished Tungsten wire, straight Tungsten wire, super thin Tungsten wire, W-Al wire Tungsten screw, Cu-W alloy, Tungsten powder, high specific gravity Tungsten alloy materials, Tungsten part and other Tungsten products.
8. We also have tungsten copper alloy sheet/plate
Material: W50-90Cu10-50
Density: 11.85g/cm3-16.75g/cm3
Product standard: GB8320-87
WCu alloy foil size: Thickness(0.08-0.7mm)*Width<120mm*Length<300mm
WCu alloy sheet size: As customer need
We supply other tungsten&molybdenum products as follows:
Tungsten Products Tungsten rods/Tungsten bar
Tungsten foil/Tungsten strip/ Tungsten sheet/ Tungsten plate/Tungsten disc Tungsten wire/ Tungsten electrode Tungsten crucible /Tungsten boat/ Tungsten tube/special shape Tungsten molybdenum alloy
Molybdenum Products Molybdenum rods bar
Molybdenum foil strip/molybdenum sheet/molybdenum plate Molybdenum wire/molybdenum electrodes Molybdenum crucible/molybdenum disk/Molybdenum boat/ Molybdenum boat/Molybdenum tube
High temperature molybdenum MoLa alloy product
TZM(Titanium-zirconium-molybdenum) sheet,rods,tube,boat,crucible&special shape Alloy Products WCu(W50Cu50,W60Cu40,W70Cu30,W75Cu25,W80Cu20,W85Cu15&W90Cu10) WNiFe / WNiCu Product/WC-Co
W90-97NiFe,W90-97NiCu
Tungsten weight Tungsten fly fishing material
Tungsten bead, brass beads,tungsten alloy hunting shot ball
More information about Luoyang Mopei Tungsten&Molybdenum Material Co.LTD The advantage of us: 1) We already have more than 11 years tungsten beads producing and exporting experience 2) Competitive price in the market,factory direct sales. 3) the whole production line from powder to finished products, top and steady quality assured 4) fast delivery and best after-sale service 5) Every month we export more beas to European,America,New Zealand,Korea etc

---
