Professional Grade Wood CNC Router for Engraving

Product Description

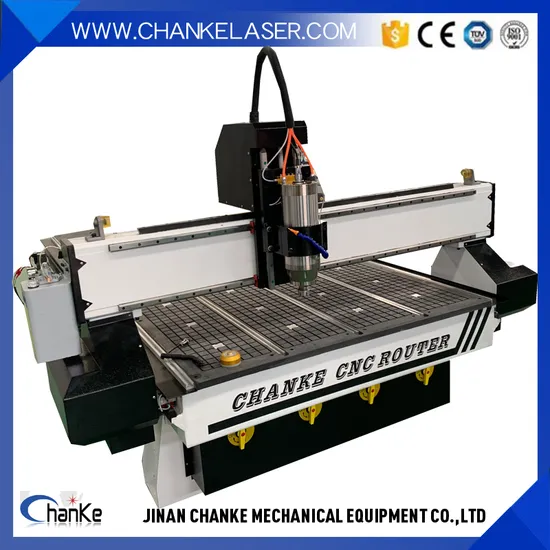

This machine from Jinan Chanke Mechanical Equipment Co., Ltd. is a state-of-the-art vacuum table Wood CNC Router. With a working size of 1300x2500x200mm, it utilizes a vacuum pump to firmly secure the mold on the table, eliminating the need for material holders. Just place the mold, activate the vacuum pump, and you're ready to work efficiently. Although it may not handle irregular or out-of-flatness molds and 3D embossments perfectly, this machine is ideal for large-scale production, significantly boosting your workflow efficiency compared to aluminum profile wood CNC routers.
On the other hand, aluminum profile woodworking machines excel in managing 3D embossments and irregular or out-of-flatness molds.
We warmly invite you to reach out to us for any woodworking machine needs, whether for wooden, MDF doors, or furniture.
We can fully customize your wood CNC router according to your specific requirements, including working size, color, and the type of driving motor. Don't hesitate to contact us for a tailored solution!
Product Description
1) Features imported square guide rails, double row slide blocks, and an imported ball screw, ensuring stable operation, high precision, and long service life.
2) Equipped with an advanced DSP system and USB handle for convenient operation and a user-friendly design.
3) Fully compatible with Type3, ArtCAM, Castmate, Proe, CorelDRAW, Wentai, and other CAD/CAM software.
4) The vacuum table features six zones for absorbing different-sized materials. The oil-free vacuum pump offers high suction power and stable performance, enhancing convenience.
5) Utilizes high-speed stepper motors and drivers, with dual motors on the Y-axis. Maximum speed can reach up to 35m/min, featuring an automatic aligning system.
Applicable Industry
Widely used in the woodworking industry, 3D wave board processing, cupboard doors, craft wooden doors, unpainted doors, screens, craft windows, and furniture milling and engraving.
Applicable Materials
Suitable for MDF, wooden plates, veneer, wood, PVC, and other applications.

Model	CK1325 MDF cnc router
Working size	1300*2500mm
Z working travel	120-450mm
Working precision	+-0.04mm
Table structure	Vacuum table
Location precision	+-0.05mm
Power consumable	3KW
Max idle speed	50000mm/min
Max working speed	25000mm/min
Spindle power	2.2KW-9.0KWor HSD for choice
Spindle rotate speed	0-24000 r/min
Working mode	Step motor ,option servo motor
Working Voltage	AC380V/50HZ, AC380V/60HZ
Run command	G Code ,UOO file

Our Service
As a factory manufacturer, we rigorously monitor the quality of every component of our products with our experienced technicians. We are confident that our CNC routers will find a ready market. We also offer customization based on your specific needs, with technicians available to resolve issues in fluent English directly.
1) The machine comes with an 18-month warranty.
2) Provide 24-hour technical support via email or phone.
3) Include a user-friendly English manual and operation video CD.
All laser engraving machines are securely packed with standard inner plastic wrap and steel structure, and outer plywood case. The inner package secures all small parts, while the robust plywood protects the laser machine during shipping.
Advantages of Plywood Case Packaging:
Firstly, the plywood case offers superior compressive strength and bearing quality, making it the preferred choice for heavy goods packaging.
Secondly, its large board area, good soil structure, and simple operational process provide better leakproof and waterproof capabilities.
Thirdly, plywood cases are fumigation-free, simplifying import procedures.
Guarantee & After Sales Service
1. We offer a 2-year warranty for the entire machine.
2. We provide a 9-month warranty for the RECI laser tubes.
3. For the focus lens and mirrors, we proudly offer a 9-month warranty to ensure lasting performance and your complete satisfaction.
4. Should any part break during the warranty period (excluding human-induced damage), we will replace it free of charge for up to 2 years.
5. Our experienced engineers can travel to your country to provide exceptional technical support, complemented by our 24-hour online after-sales service team.
Professional Service
From manufacturing at our factory to delivering directly to your port or company, we provide an all-in-one service. Leveraging our extensive expertise in shipping logistics and customs clearance, we devise the most cost-effective delivery plans, ensuring rapid lead times. Whether you order our MOQ or a significantly larger quantity, we treat each customer as our top priority.
FAQ
Question 1: What is the duration of the machine's guarantee?
Answer: 2 years
Question 2: What kind of after-sales service do you provide?
Answer: We offer comprehensive technical support via phone, e-mail, or MSN, available 24/7.
Question 3: How do we install the machine?
Answer: We provide a user-friendly English manual and an operation video CD for easy installation.
Question 4: What are the payment terms?
Answer: A 30% T/T deposit is required, with the remaining 70% T/T due before shipping.
Question: Do you arrange shipment for the machines?
Answer: Yes, esteemed customers, for FOB or CIF pricing, we manage the shipment for you. For EXW pricing, clients must arrange shipment either by themselves or through their agents.

---
