Aluminum Foil Package Food Metal Detector Fe SUS Detecting Rejecting

Product Description

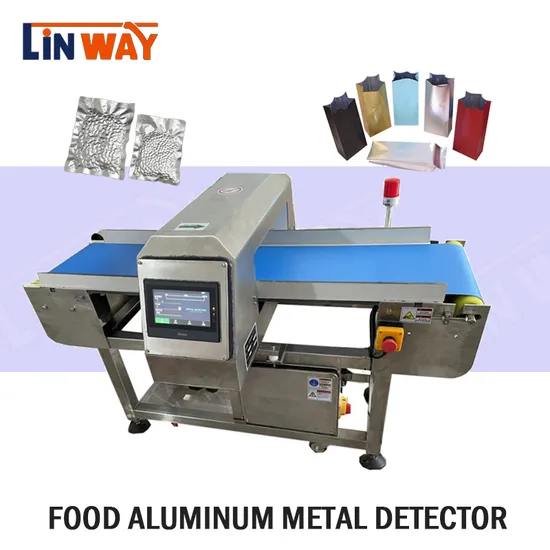

5025 Food Industry Metal Detector (Aluminum Foil Version) OVERVIEW
LW-MD metal detector series are with smart DSP technology for detecting all metal contaminants detection in packaged or non-packaged food, including FE, Non-Fe(Copper, Aluminum, etc) and stainless steel. It's popular in various industries like, aquatic seafood products, meat or poultry, salted products, pastry, nuts, fresh vegetables and fruits, chemical raw material, pharmacy, cosmetics, toys, etc.
This hot-sale version 5025 online belt metal detector is special for aluminum foil packaged bag or bottle
Other version 2018, 3012, 5025, 6030, 7025 are available according to project request. Detailed Photos
LEADING FEATURES
Compact & rigid 304SUS body frame.
Using phase tracking, product tracking, and automatic balance correction.
Improved inspecting sensitivity and stability with wider application.
Good inspecting solution even for high salt and moisture products.
Automatic product learning function for simple and easy to operate.
Various flexible rejection systems are available as per project request.
Add dual-way detection and switchable high and low frequency Product Parameters

Model No.	LW-MD5025AL (2018 3015 4020 6020 are also available)
Machine Size	1500(L)x1080mm(W) Height above ground: 700mm + 50mm
Detecting Area	500mm(W)x250mm(H)
Body Material	304 Stainless Steel
Running Speed	30-90PPM
Conveyor Belt Size	3060mm*500mm
Conveyor Belt Material	Food Grade PU (White)
Control Panel	Touch screen Control
Motor Power	120W, 50Hz
Storage Program	100 Kinds of Products
Channel Size	500mm(W)x250mm(H)
Detector Sensitivity(mm)	Fe 1.0mm
	SUS 3.5mm
Suitable Materials Detected	Aluminum Foil bag pouch bottle, etc.
Operation Direction	Left to right side, or right to left side
Rejecting Method	Alarm with stop, air-pusher, belt drop available
Detecting Speed	20-35 meters per minute adjustable
Max Product Detected Weight	Below 25KG
Work Environment	Temperature -10ºC to 40ºC
Power Requirement	220V 50HZ 60HZ 1P

Company Profile
Found in 2006, LINWAY has been concentrated in food inspecting detecting machines, including high speed & precision dynamic online checkweigher, food metal detector, food x ray machine, automatic weight annular or straight sorting or grading, also we're supplying high quality other related feeding weighing packaging line, etc and other related customized packaging machines. Qualified packaging solution is from our years of devition and understanding of the packaging industry. LINWAY always strives for perfectionin the pursuit of quality, while considering easy to operate, easy to disassemble, easy to clean small investment, stable performance, so that the packaging carry, deliver and create value.
Q: What's Linway fist products?
A: Quality inspecting machine, Checkweigher, metal detector, color sorting, vision counting and related machines.
Q: Why do we need quality inspecting machines?
A: Automatic inspecting is more efficient, reject NG goods, reduce client's complaints, maxinum protect your brand.
Q: How to choose a good check weigher?
A: Confirm weight, package size, exptected accuracy and speed, running direction, rejecting device, etc.
Q: How to use your metal detector?
A: Pluge to run easy operation with our auto product learning function
Q: OEM or Customization is available?
A: Yes, both are possible.
Q: How is Metal detector work?
A: Using the principle of electromagnetic induction, three sets of coils are distributed inside the probe: the transmitting coil and two equivalent coils, the receiving coil. After the coil is energized, an electromagnetic field will be generated in the probe window area, without any metal. When foreign objects enter, the induced voltages of the receiving coils on both sides cancel out each other to achieve equilibrium State; When metal enters, it will cause changes in the electromagnetic field, and the induced voltage of the receiving coils on both sides is zero, The method of offsetting can be used to determine the presence of metal impurities.

---
