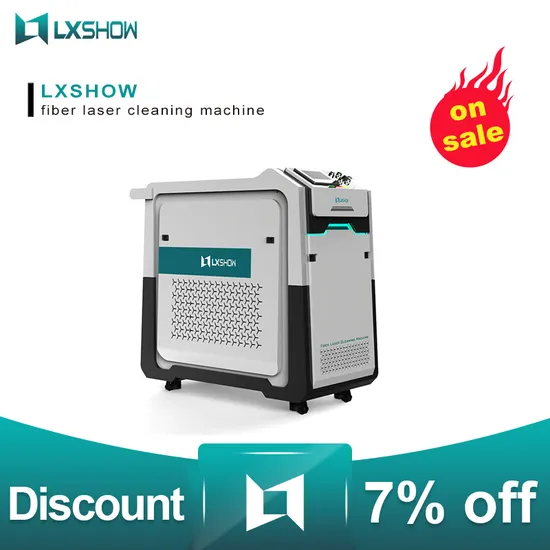

2024 High Speed and High Efficiency Fiber Laser Cleaner for Scale Removal

Product Description

High Speed and High Efficiency Fiber Laser Cleaner for Scale Removal
Technology Parameter

Equipment model	LXC-50W	LXC-100W	LXC-200W	LXC-500W	LXC-1000W
Laser working medium	Yb-doped fiber
Laser power	50W	10W	200W	500W	1000W
Laser wavelength	1064nm
Pulse frequency	20-100KHz	20-100KHz	20-200KHz	20-50KHz	20-50KHz
Cooling method	Air cooling	Air cooling	Water cooling	Water cooling	Water cooling
Dimension	760mmX780X790mm			1100x950x700mm
Total Weight	56kg	60kg	65kg	130kg(Including Water tank)	140kg
Total power	350W	600w	1000w	1800w	2000w
Scan width	10-60mm
Optional	Hand/automatic
Working temperature	5-40ºC

Application

Application
Rust Removal	Oxide Removal	Molding Cleaning	Surface Preparation
Coatings Removal	Weld Pre-treatment	Gluing Pre-treatment	Removal of Oil and Grease
Paint Removal	Surface Cleaning	Stain Removal	Surface Roughening
Tool Cleaning	Historic Restoration	Selective Paint Removal	Precise Cleaning

Samples
Character
1). Powerful, short pulses, fast moving laser pulses act on the surface of the target, producing tiny plasma ruptures, shock waves, thermal stress, etc., causing surface materials to sublimate and evaporate.
2). The focused laser beam is capable of accurately evaporating surface objects or dirt.
3). Laser cleaning is suitable for metal surfaces. The treated and optimized laser beam does not alter metal properties or damage those laser treated surfaces. The precisely tuned laser beam acts only on the coating, residual residue or oxide, and does not harm the underlying parent metal surface.
4). By adjusting other parameters, the laser beam is able to achieve the desired cleaning effect accurately and easily.
Configuration

Packaging & Shipping
Our Customers
Offline Exhibition
Certification Display About machine quality, we have get the third party certification, and about the machine, we have 3 years machine warranty, if you need, we always here.
About Jinan Lingxiu Laser Equipment Co., Ltd. It is established in July 2004, owns more than 500 square meters of researching and office
space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate and are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries and areas,and supply OEM service for more than 30 manufactures.
Our Team
FAQ
Q1 :How about warranty?
A1:2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.

Q2:I don't know which one is suitable for me ?
A2:Please tell me
1). your materials.
2). what kind impurity.
3). the thickness of your impurity.

Q3:Payment terms?
A3:****** trade assurance/TT/West Union/Payple/LC/Cash and so on.

Q4:Do you have CE document and other documents for customs clearance?
A4:Yes,we have original. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.

Q5:I don't know how to use after i receive or i have problem during use,how to do?
A5:
1). We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.
2). If have any problem during use,you need our technician to judge The problem elsewhere will be solved by us. We can provide team viewer /Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.

---
